[Carrier frequency]：410~441MHz
[Transmit power]： 33dBm
[Communication distance]： 16km
[Product weight]：5.3±0.1g

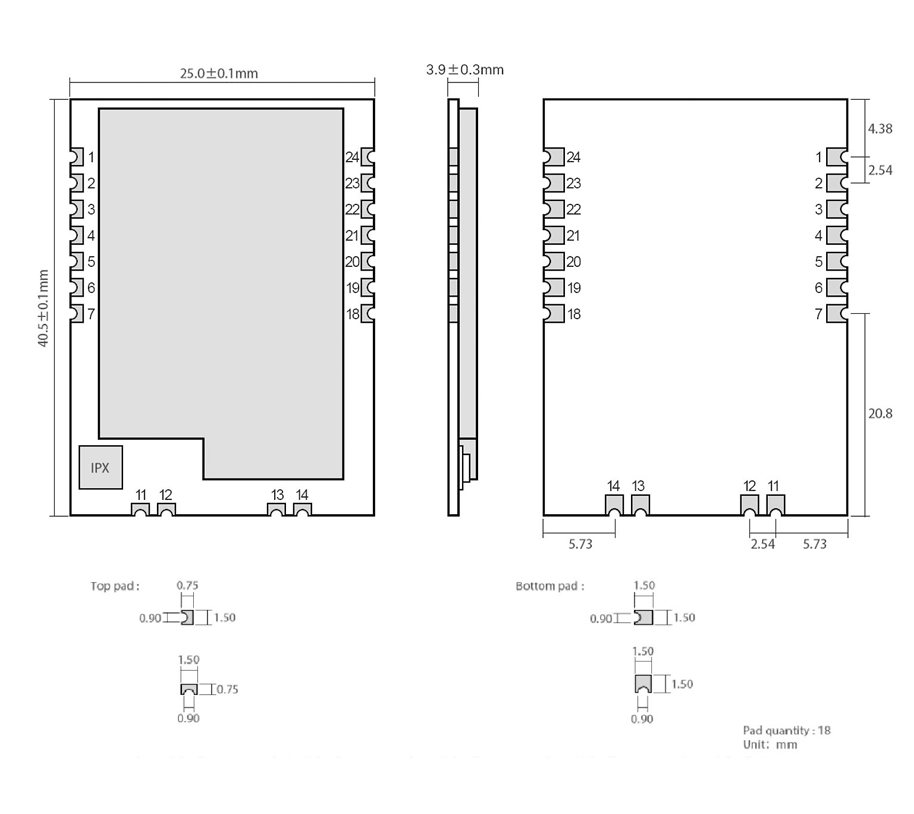

[Product size]： 25*40.5mm

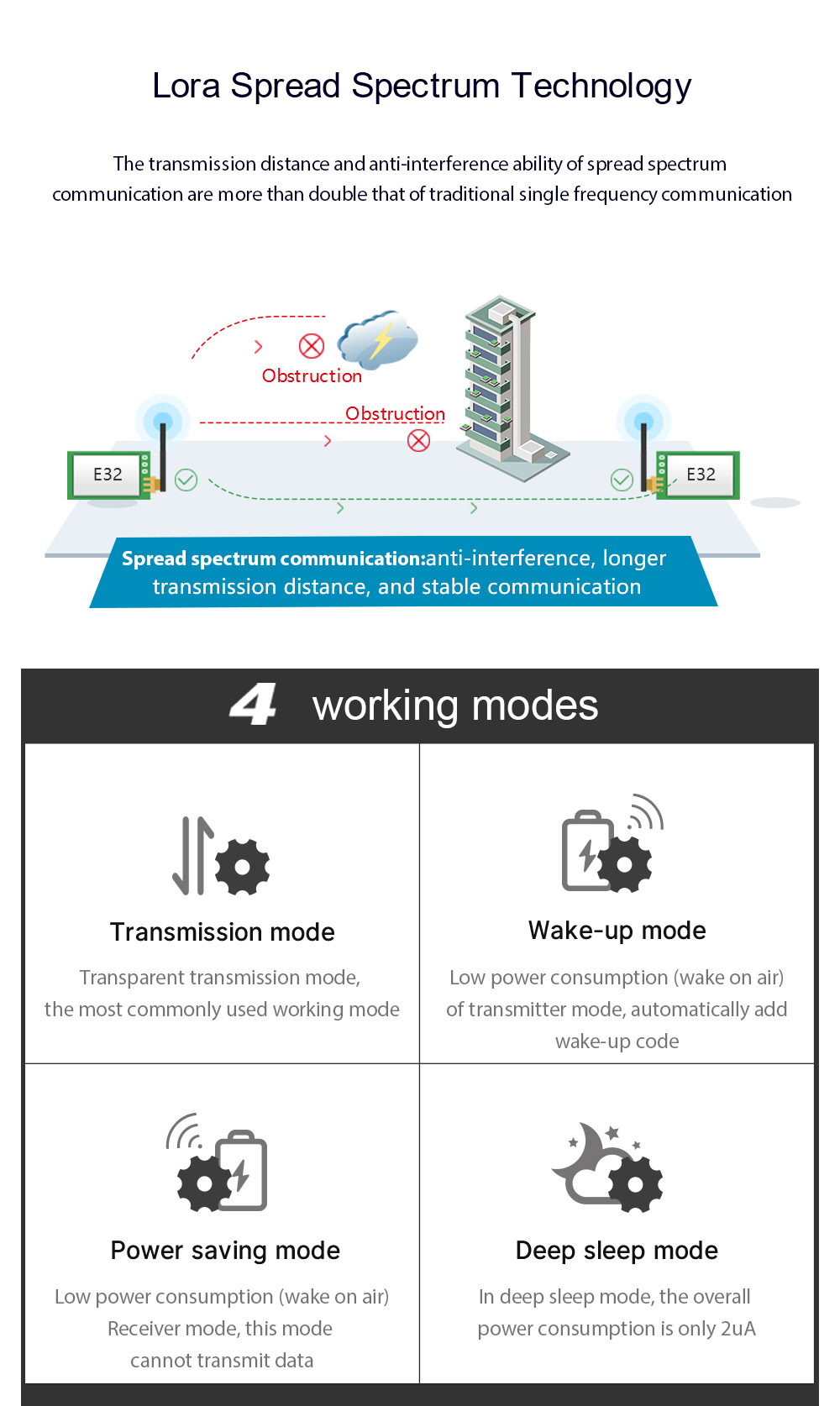

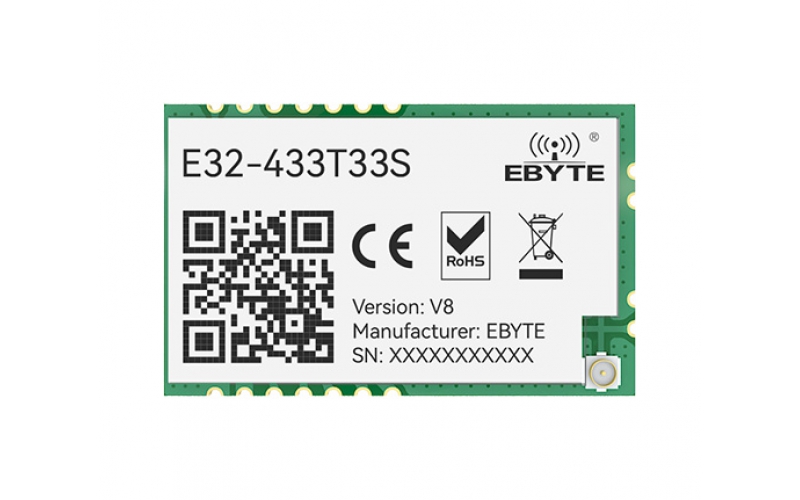

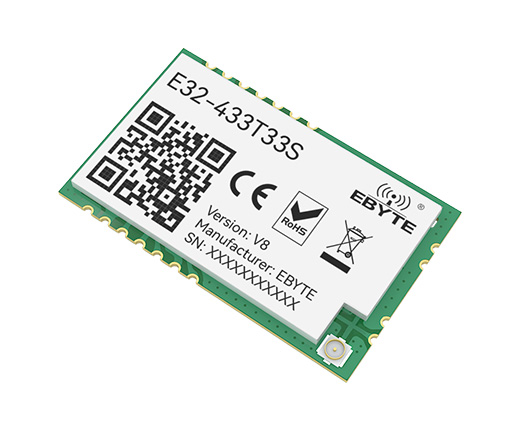

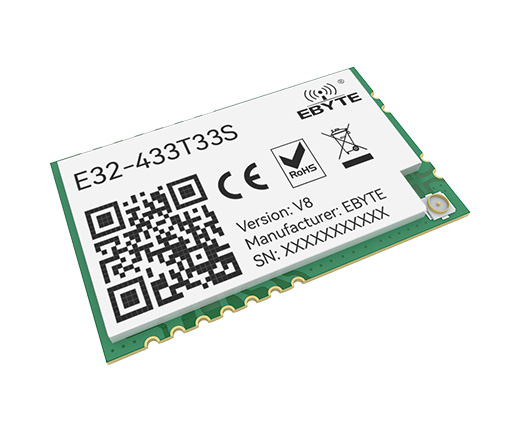

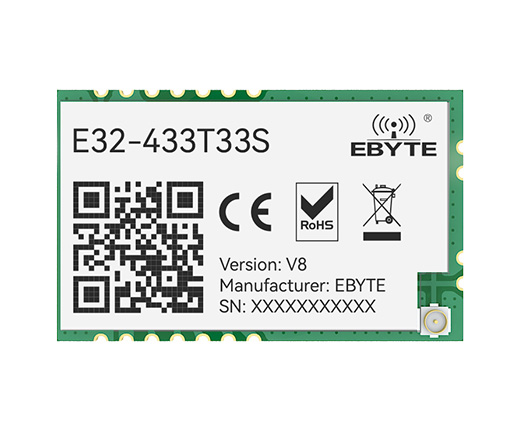

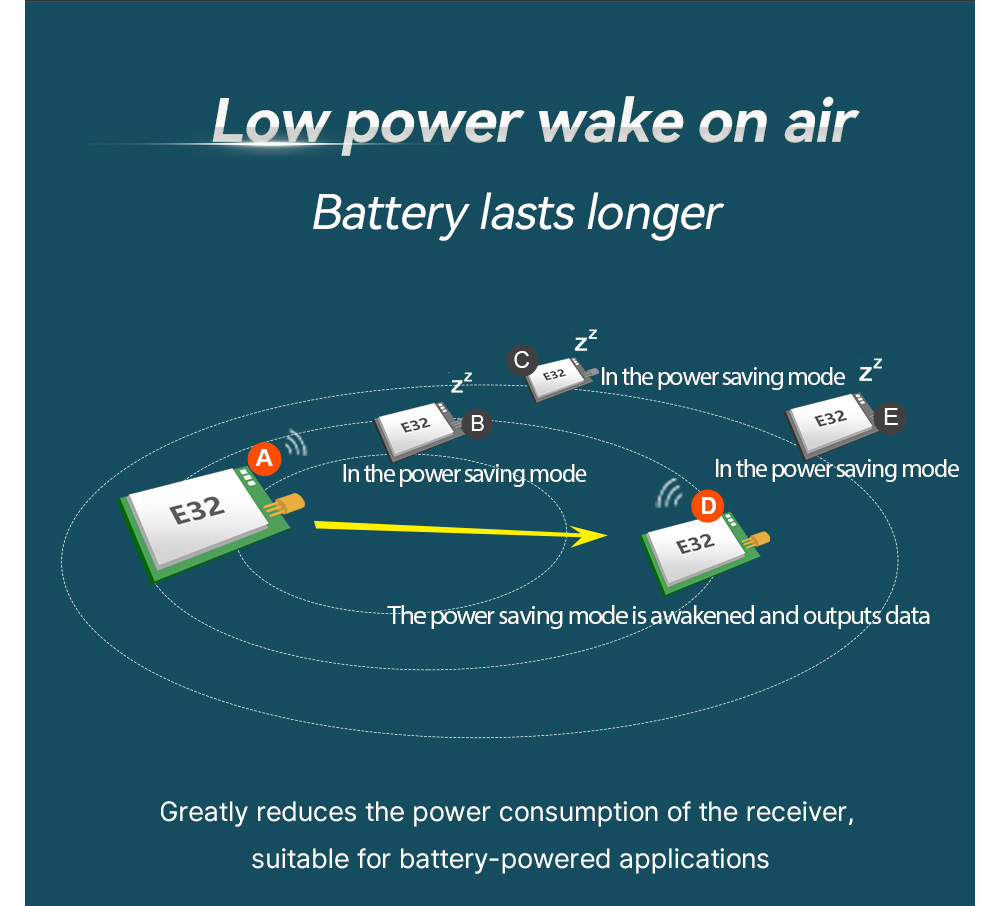

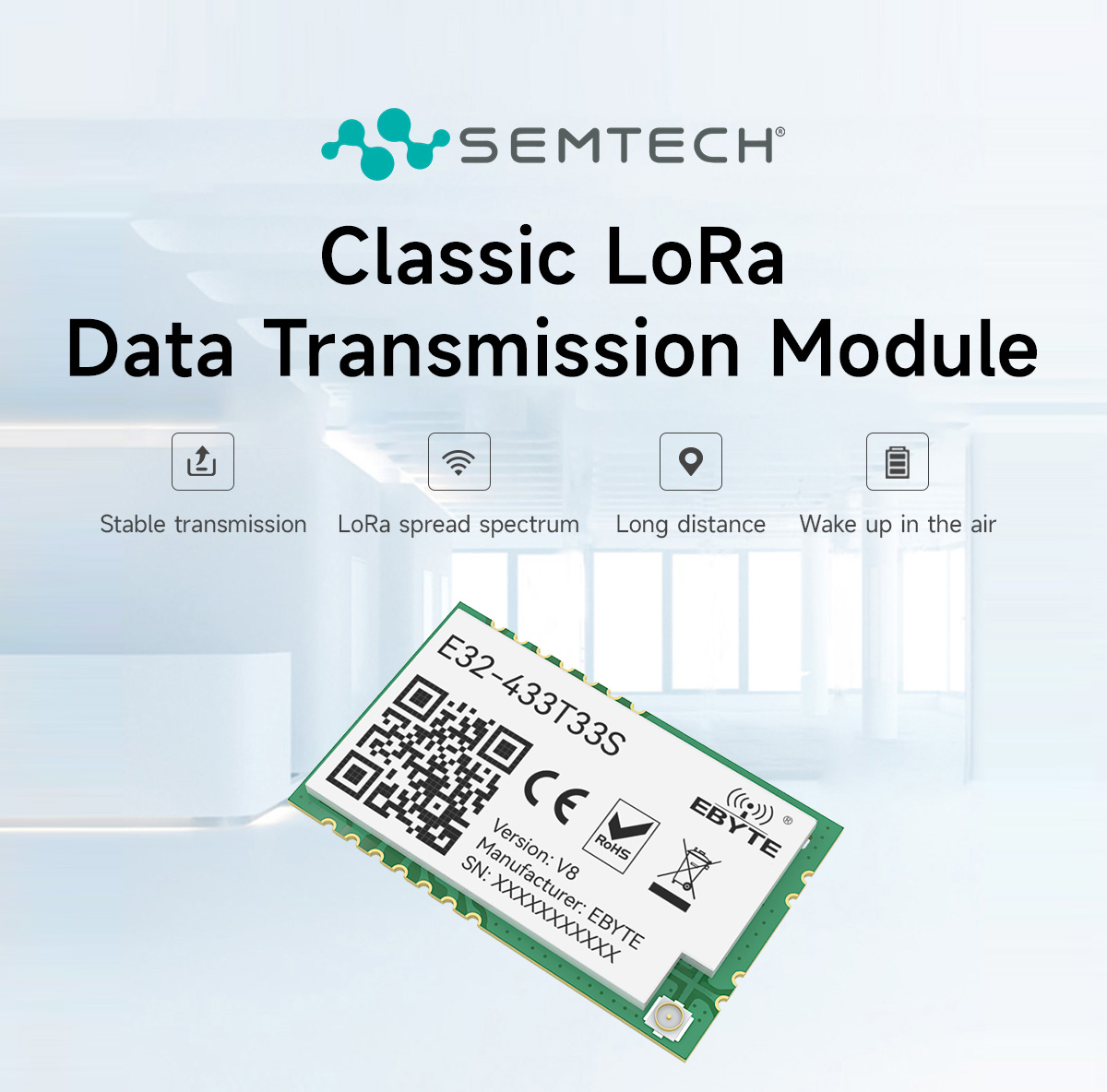

[Introduction]：E32-433T33S is a wireless serial port module (UART) based on SEMTECH's LoRa solution. It has a variety of transmission modes, working at 410MHz~441MHz, (default 433MHz), LoRa spread spectrum technology.

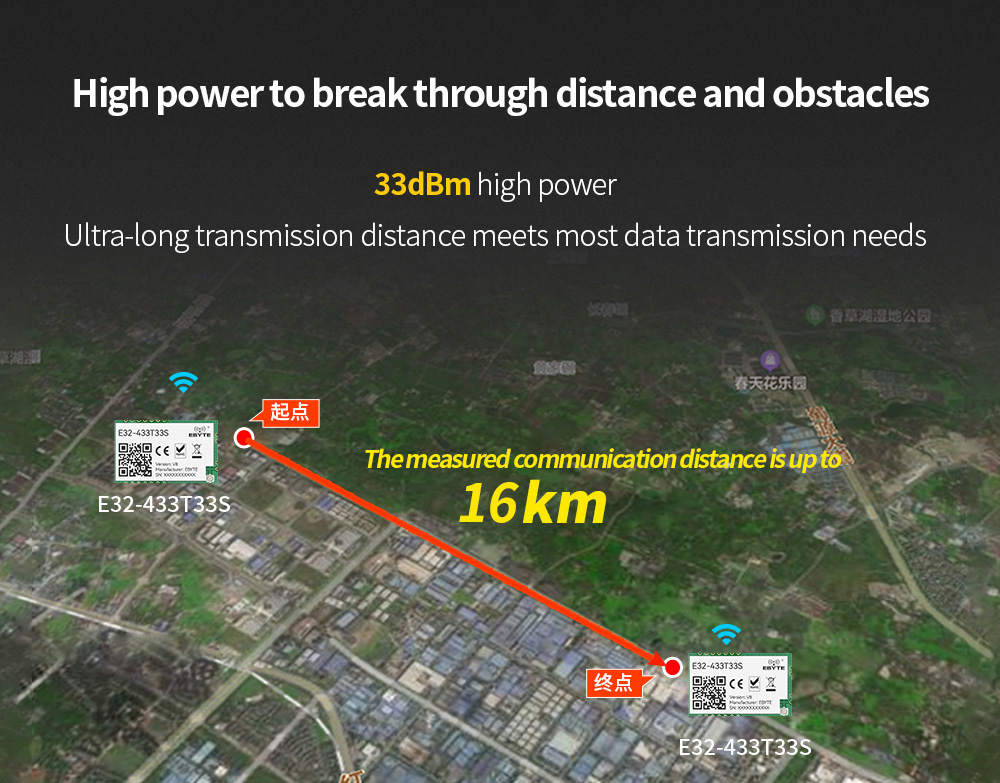

| RF Parameter | Value | Remark |
|---|---|---|
| Working frequency | 410~441 MHz | Default: 433MHz |
| Transmitting power | 32~34 dBm | - |
| Receiving sensitivity | -147 dBm | Air data rate: 2.4kbps |
| Air data rate | 0.3k~19.2kbps | Default: 2.4kbps |
| Test distance | 16km | In open and clear air, with maximum power, 5dBi antenna gain, height of 2.5m,air data rate: 2.4kbps |
| Hardware Parameter | Value | Remark |
|---|---|---|
| Size | 25 * 40.3 mm | |
| Antenna type | IPX/Stamp hole | |
| Communication interface | TTL | @3.3V |
| Package | SMD | |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|
| Power supply | 3.3 | 5.0 | 5.5 | V | |
| Communication level | - | 3.3 | - | V | |
| Transmitting current | 850 | 1000 | 1200 | mA | Instant power consumption |
| Receiving current | 11 | 13 | 15 | mA | |
| Sleep current | - | 2 | - | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
| serial number | pin | Pin direction | Remark |
| 1 | GND | Input | Module ground |
| 2 | VCC | Input | Positive reference of module power supply, voltage range: 3.3～5.5V DC |
| 3 | AUX | output | Used to indicate the working status of the module; the user wakes up the external MCU, and the output is low during the initialization of the power-on self-test Level; (can be suspended) |
| 4 | TXD | output | TTL serial port output, connected to external RXD input pin; |
| 5 | RXD | enter | TTL serial port input, connected to the external TXD output pin; |
| 6 | M1 | Input (very weak pull-up) | Cooperate with M0 to determine the 4 working modes of the module (not floating, if not used, it can be grounded) |
| 7 | M0 | Input (very weak pull-up) | Cooperate with M1 to determine the 4 working modes of the module (not floating, if not used, it can be grounded) |
| 11 | ANT | output | Antenna interface (high frequency signal output, 50 ohm characteristic impedance) |
| 12 | GND | - | Fixedly |
| 13 | GND | - | Fixedly |
| 14 | GND | - | Fixedly |
| 18 | NC | - | Empty feet |
| 19 | NC | - | Empty feet |
| 20 | NC | - | Empty feet |
| 21 | NC | - | Empty feet |
| 22 | RESET | Input | Module reset pin, low level trigger, it is recommended that customers use a single chip microcomputer connection, reset processing and resume work in unexpected situations |
| 23 | GND | - | Fixed ground |
| 24 | NC | - | Empty feet |
