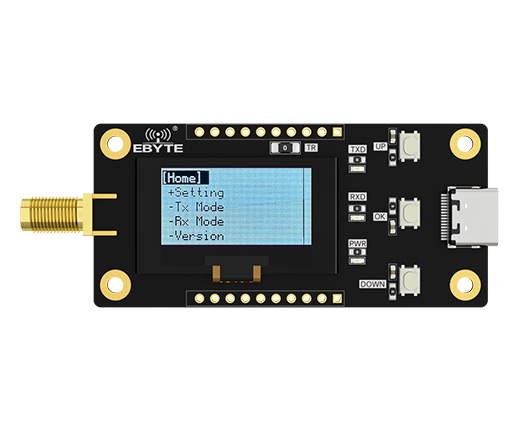

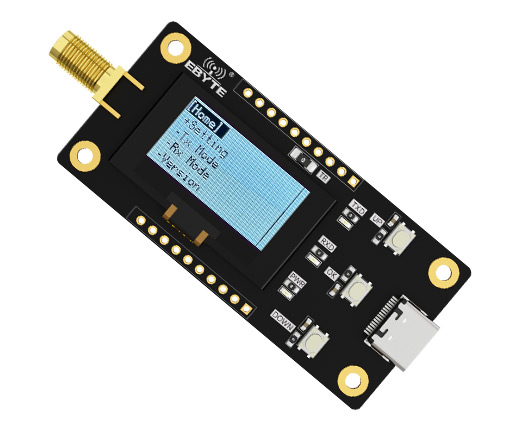

E220-400MBL-SC LoRa Module Evaluation and Test Kit OLED Display Long Distance RF Transceiver

[Interface]：Type-C

[Chip]：LLCC68

[Frequency]：400MHz

[Size]：30*64mm

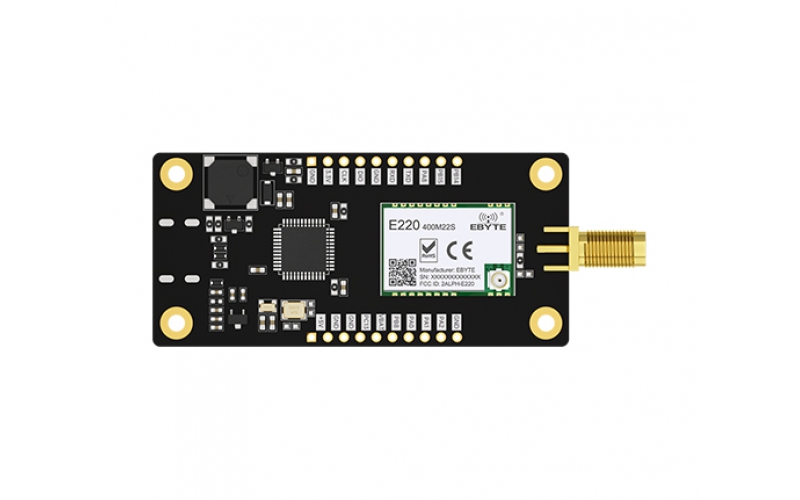

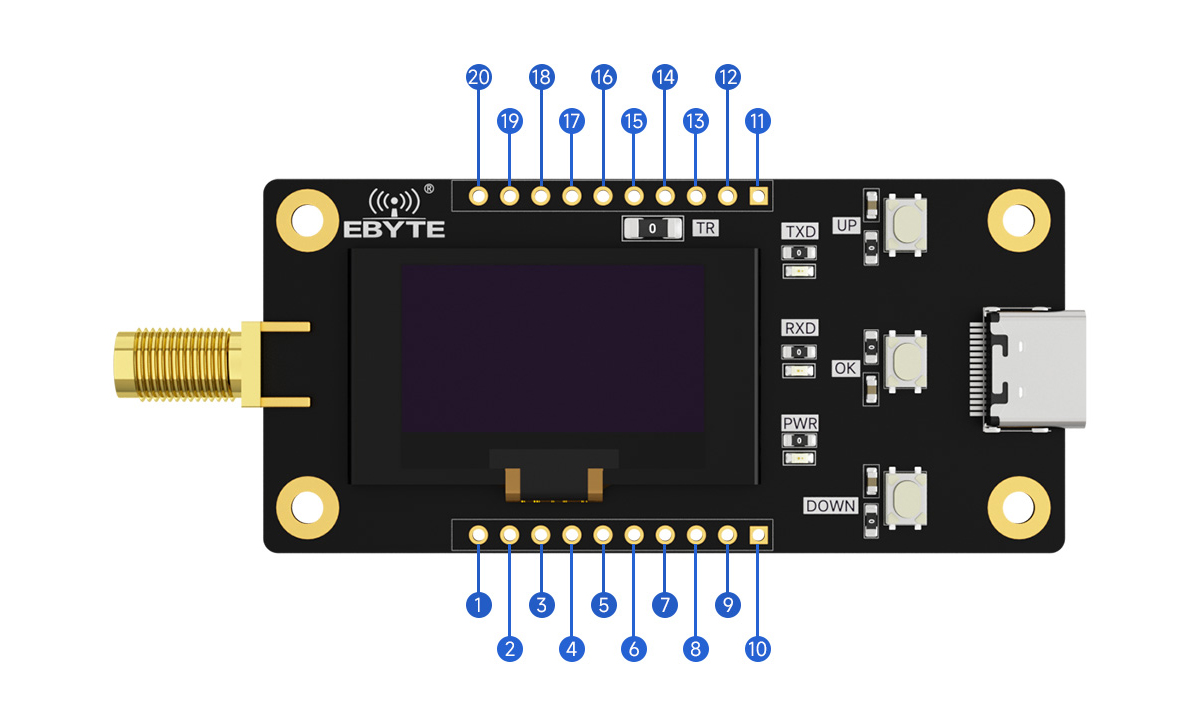

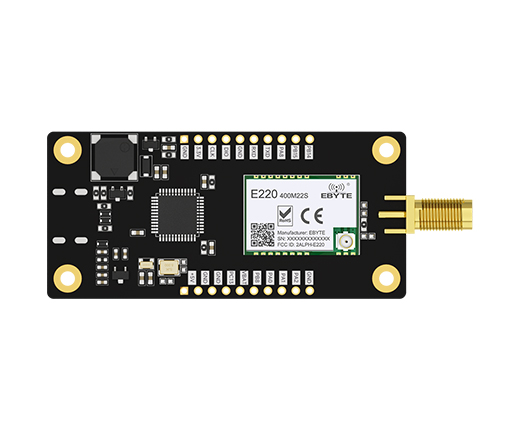

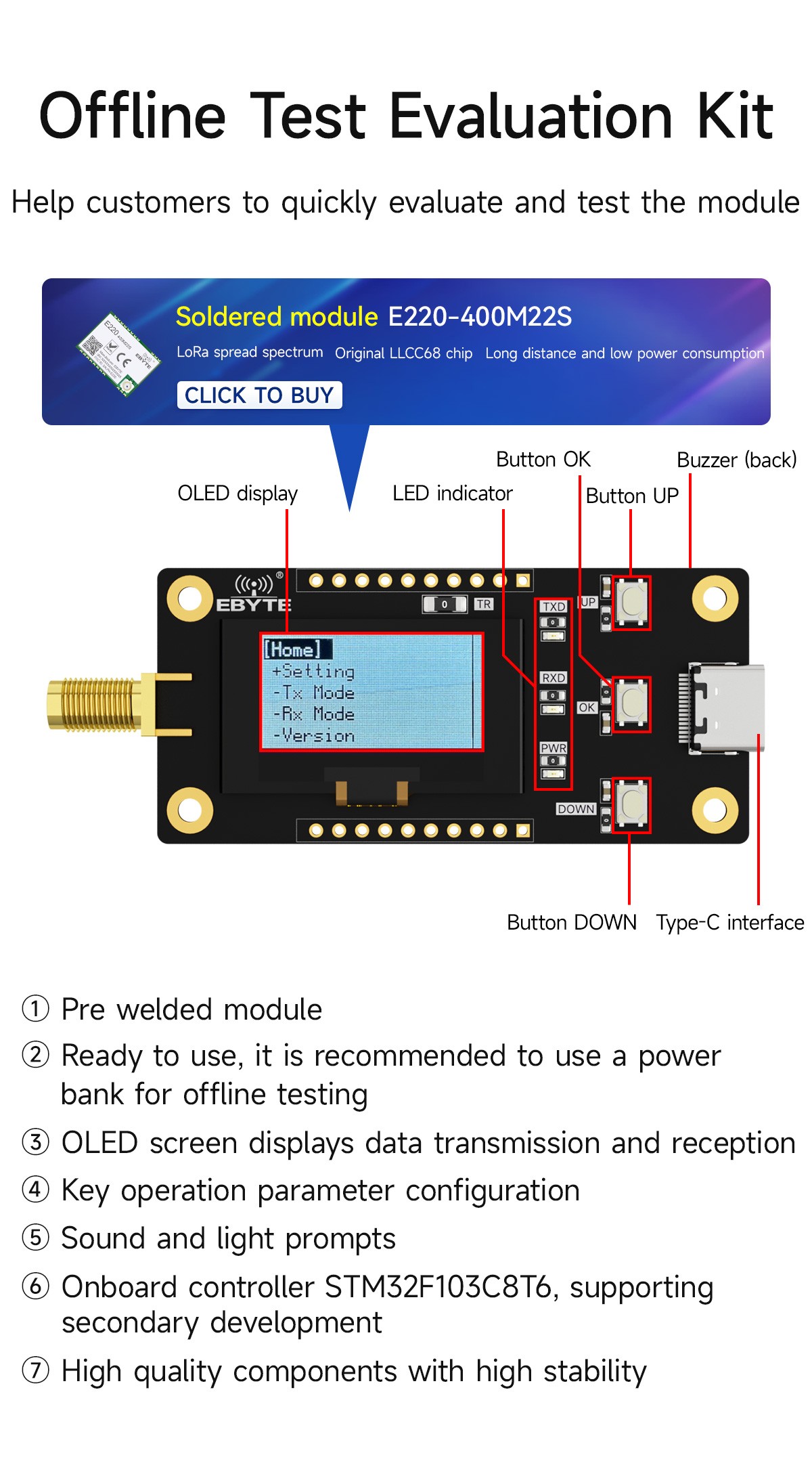

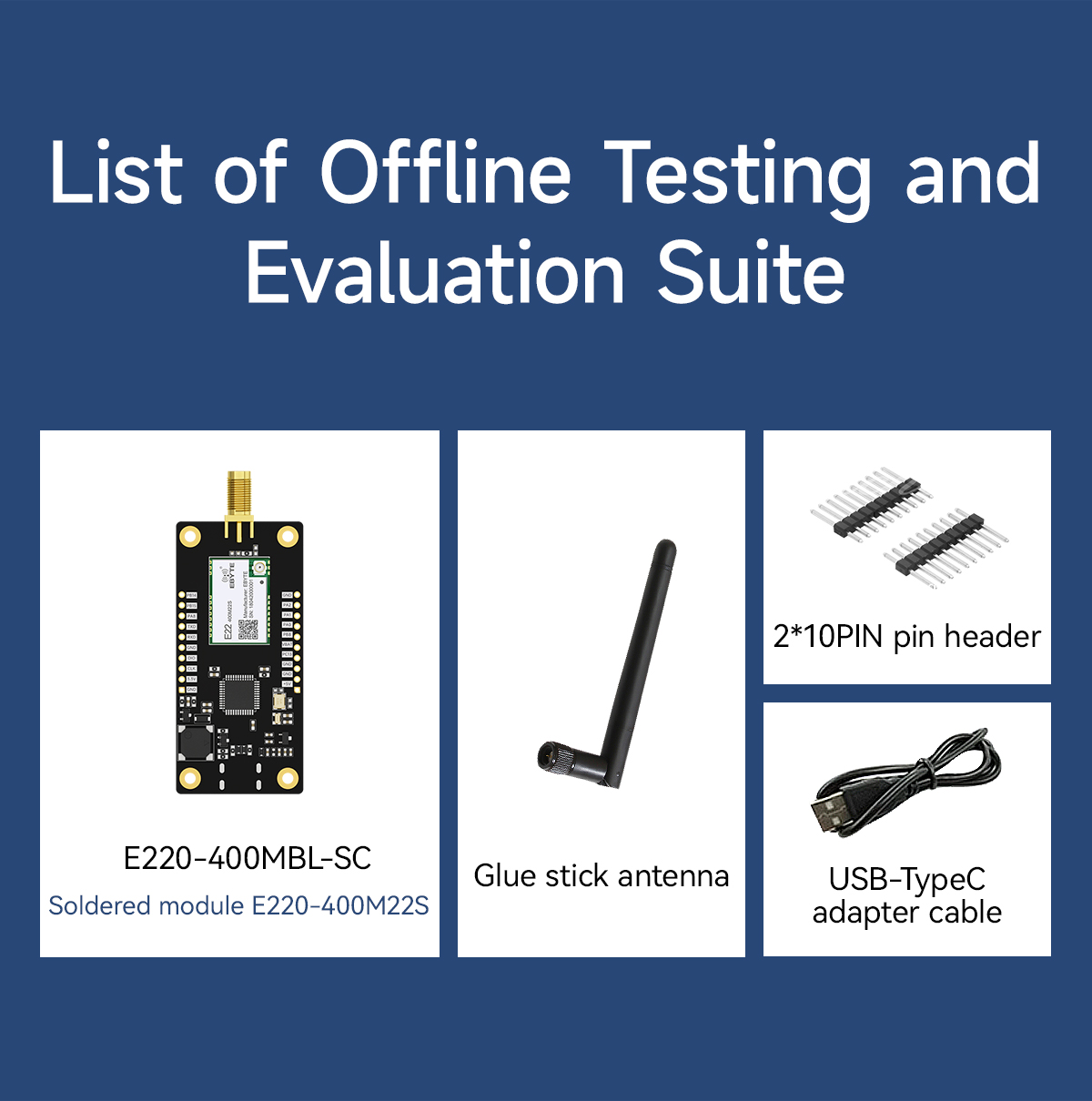

[Introduction]：The SC series kit is designed for users to quickly evaluate Ebyte's new generation of package-compatible wireless modules. The development board is soldered with the E220-400M22S model UART interface lora module, and the MCU uses the STM32F103C8T6. The available pins have been led out to the pin headers on both sides to facilitate developers to carry out secondary development. The kit provides complete software application examples to help customers quickly get started with wireless data communication development. Different types of Sub-1G wireless modules can be mounted on the board according to customer needs.
