[Frequency]：410~441MHz
[Power]：21~30dBm
[Distance]： 8.0km
[Interface]：UART
[Weight]：5.0±0.1g

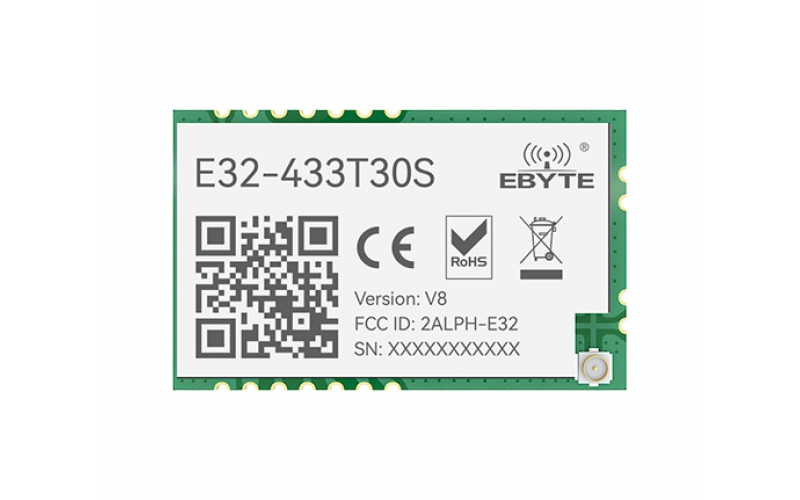

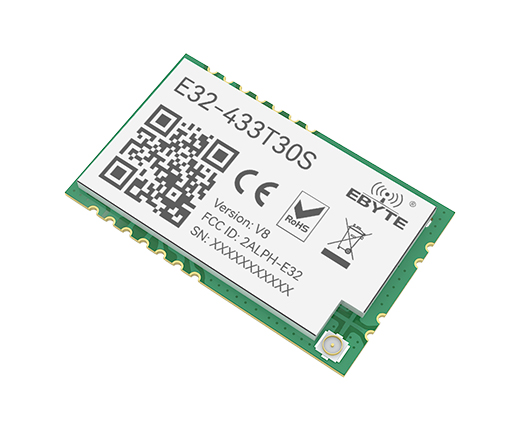

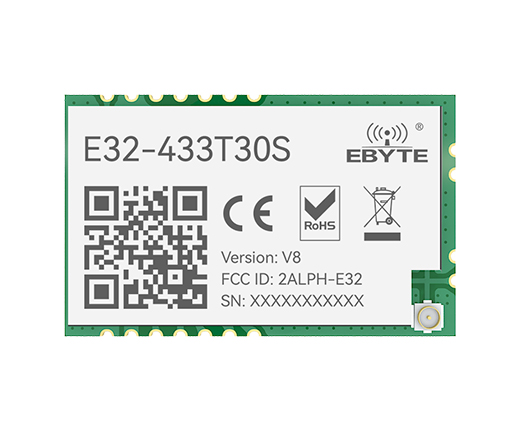

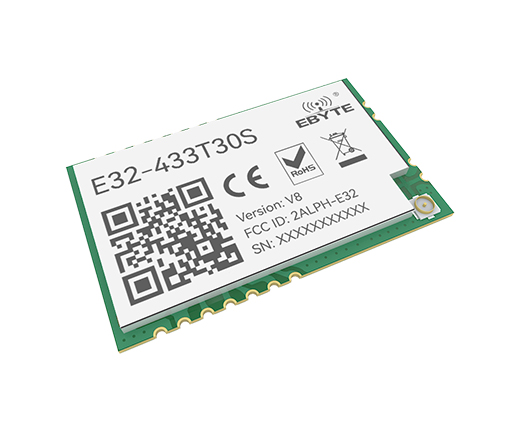

[Introduction]：E32-433T30S is an SMD wireless module (UART) based on SEMTECH's original imported RF chip. It has an operating frequency of 410-441MHz and has LoRa technology, data encryption and compression functions.
| RF Parameter | Value | Remark |
|---|---|---|
| Working frequency | 410~441 MHz | Default: 433MHz |
| Transmitting power | 21~30 dBm | Default: 30dBm（About 1W） |
| Receiving sensitivity | -147 dBm | Air data rate: 0.3kbps |
| Air data rate | 2.4k~19.2kbps | Default: 2.4kbps |
| Test distance | 8000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,air data rate: 2.4kbps |
| Hardware Parameter | Value | Remark |
|---|---|---|

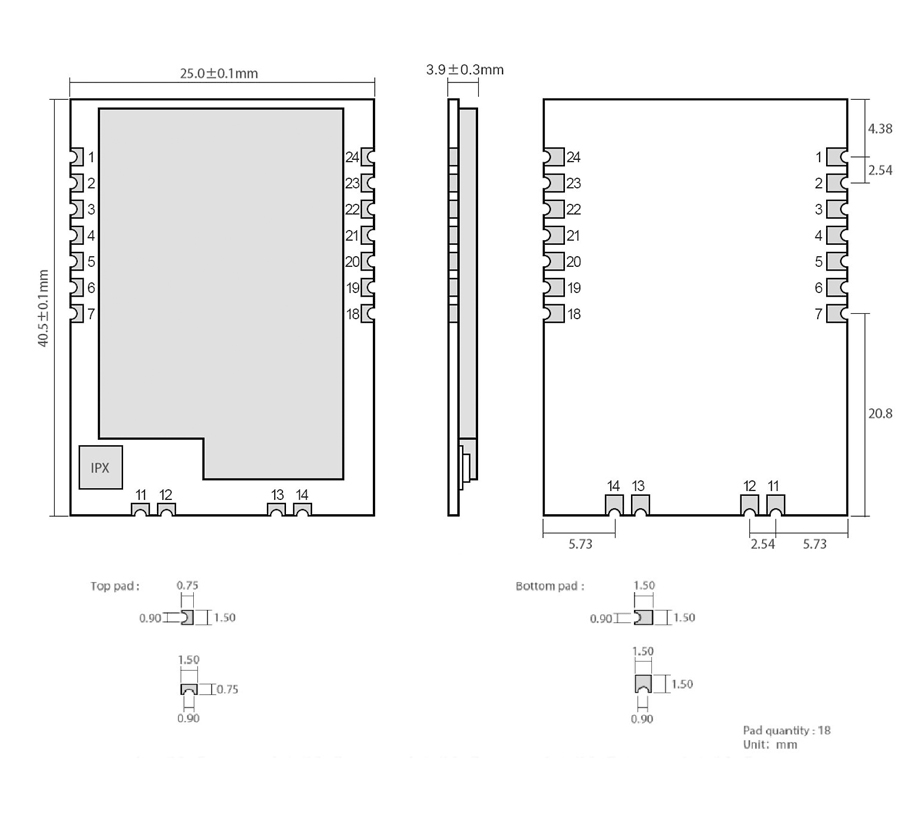

| Size | 25 * 40.3 mm | |
| Antenna type | IPX/Stamp hole | |
| Communication interface | UART | Baud rate: 1200~115200, default: 9600 |
| Package | SMD | |
| Buffer | 512 bytes buffer | Automatically sub-packaging with 58 bytes per package |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|
| Power supply | 3.3 | 5.0 | 5.2 | V | |
| Communication level | 2.5 | 3.3 | 3.6 | V | |
| Transmitting current | 520 | 550 | 610 | mA | 30dBm（1W） |
| Receiving current | 22 | 23 | 25 | mA | |
| Sleep current | 4 | 5 | 6 | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ | |
| serial number | pin | Pin direction | Remark |
| 1 | GND | Input | Module ground |
| 2 | VCC | Input | Positive reference of module power supply, voltage range: 3.3～5.5V DC |
| 3 | AUX | output | Used to indicate the working status of the module; the user wakes up the external MCU, and the output is low during the initialization of the power-on self-test Level; (can be suspended) |
| 4 | TXD | output | TTL serial port output, connected to external RXD input pin; |
| 5 | RXD | enter | TTL serial port input, connected to the external TXD output pin; |
| 6 | M1 | Input (very weak pull-up) | Cooperate with M0 to determine the 4 working modes of the module (not floating, if not used, it can be grounded) |
| 7 | M0 | Input (very weak pull-up) | Cooperate with M1 to determine the 4 working modes of the module (not floating, if not used, it can be grounded) |
| 11 | ANT | output | Antenna interface (high frequency signal output, 50 ohm characteristic impedance) |
| 12 | GND | - | Fixedly |
| 13 | GND | - | Fixedly |
| 14 | GND | - | Fixedly |
| 18 | NC | - | Empty feet |
| 19 | NC | - | Empty feet |
| 20 | NC | - | Empty feet |
| 21 | NC | - | Empty feet |
| 22 | RESET | Input | Module reset pin, low level trigger, it is recommended that customers use a single chip microcomputer connection, reset processing and resume work in unexpected situations |
| 23 | GND | - | Fixed ground |
| 24 | NC | - | Empty feet |
