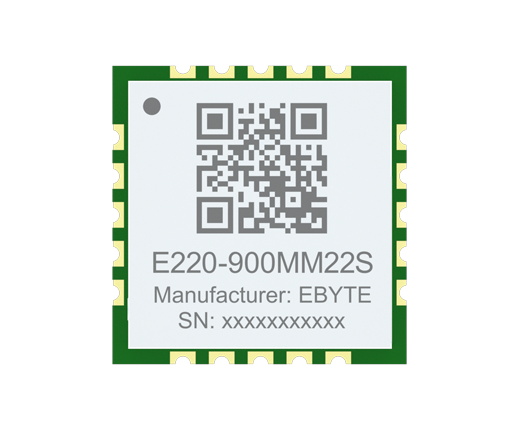

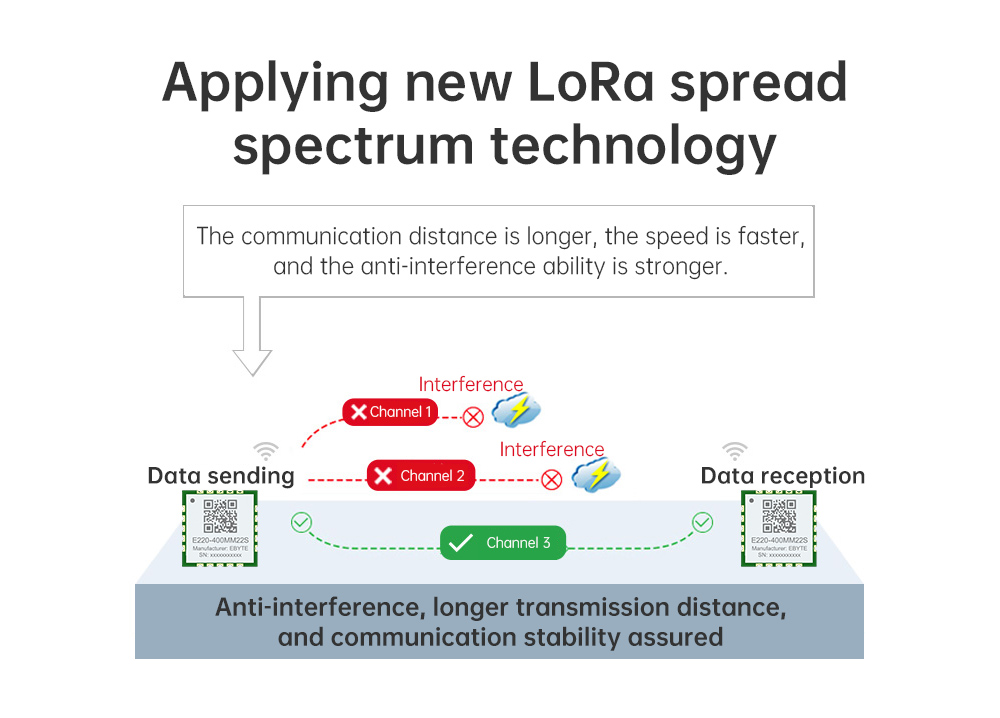

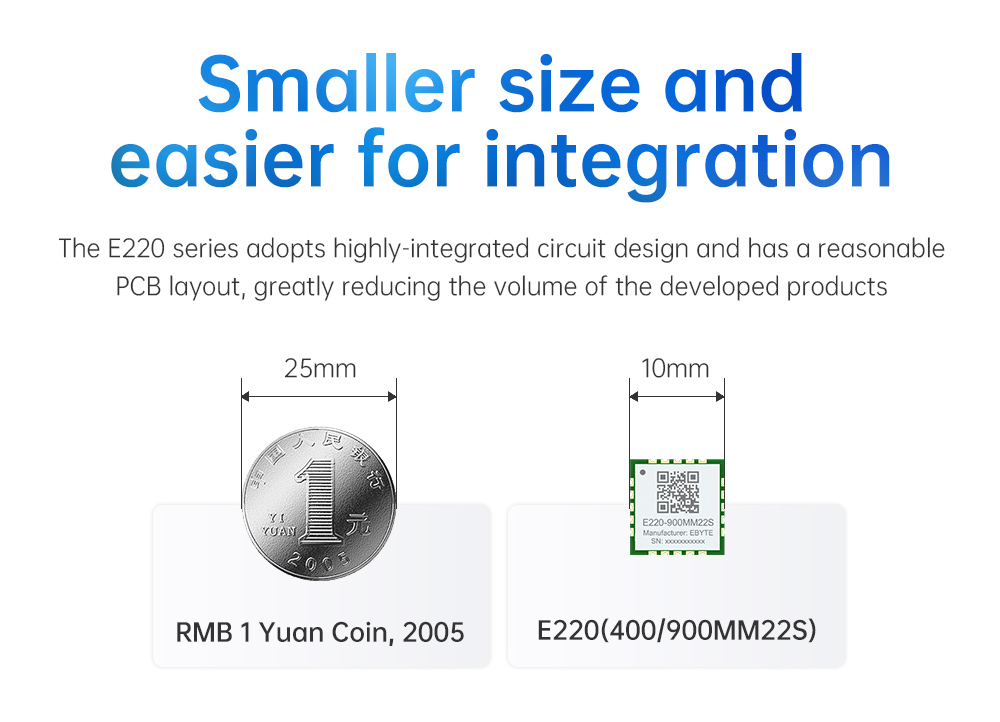

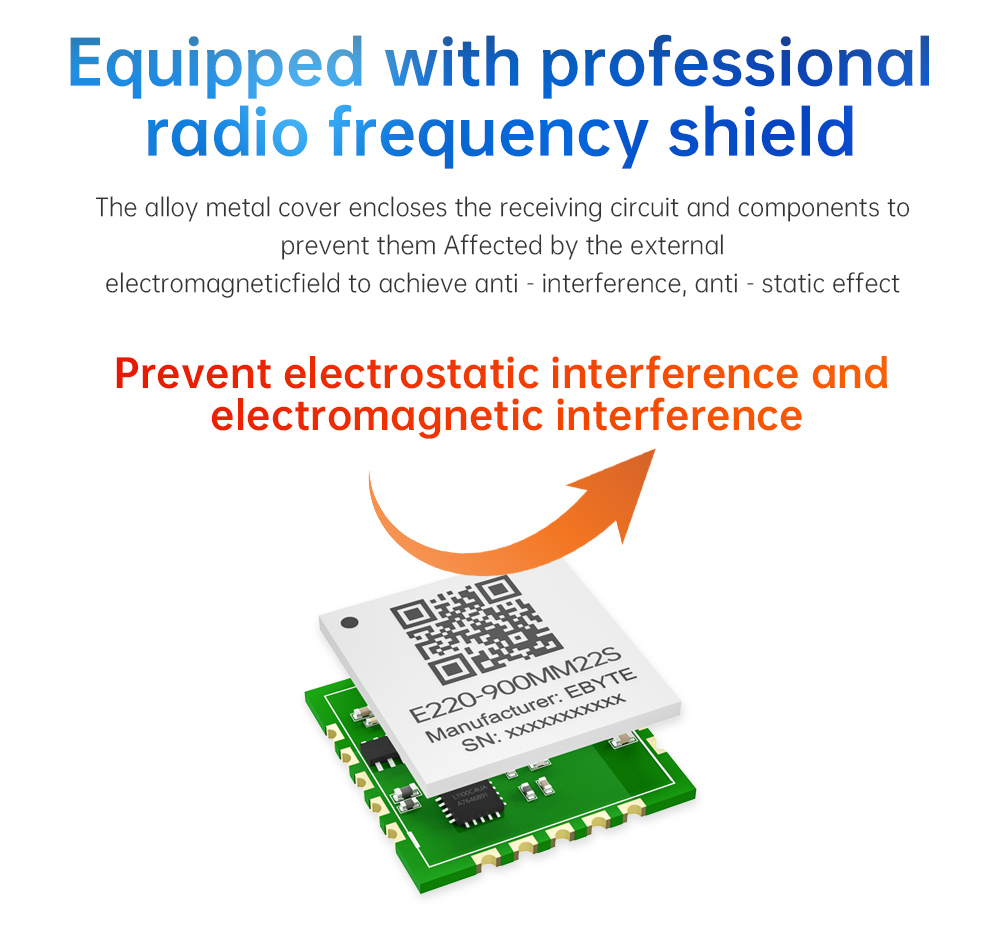

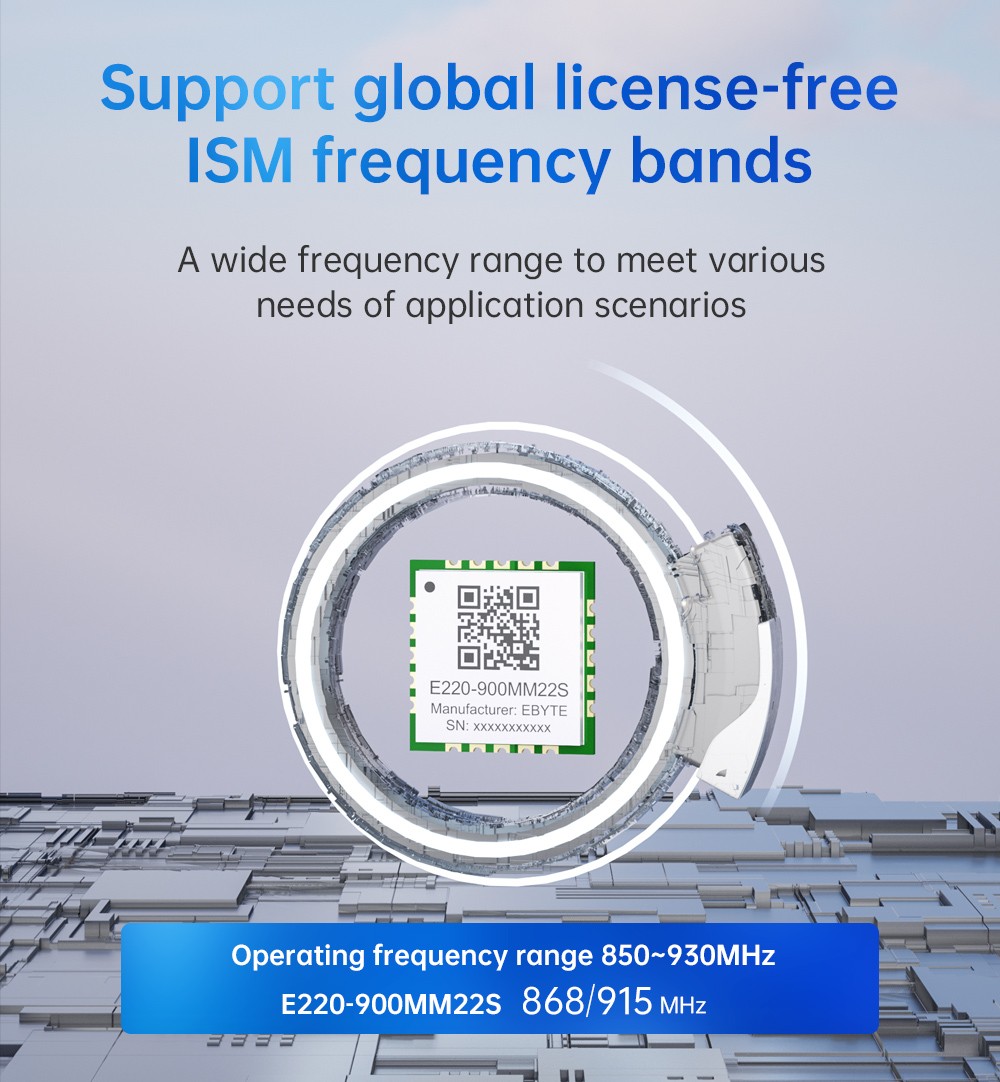

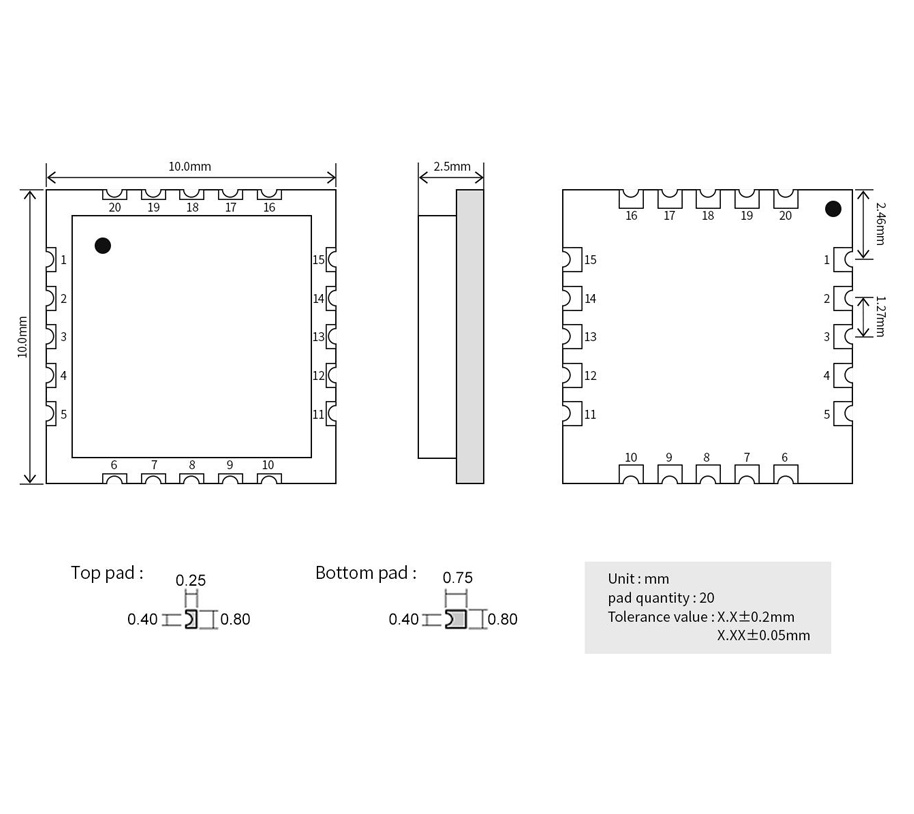

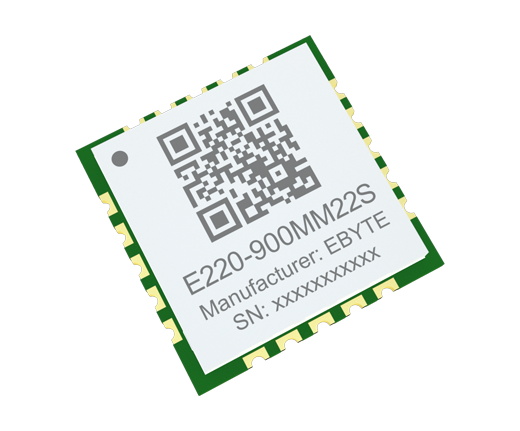

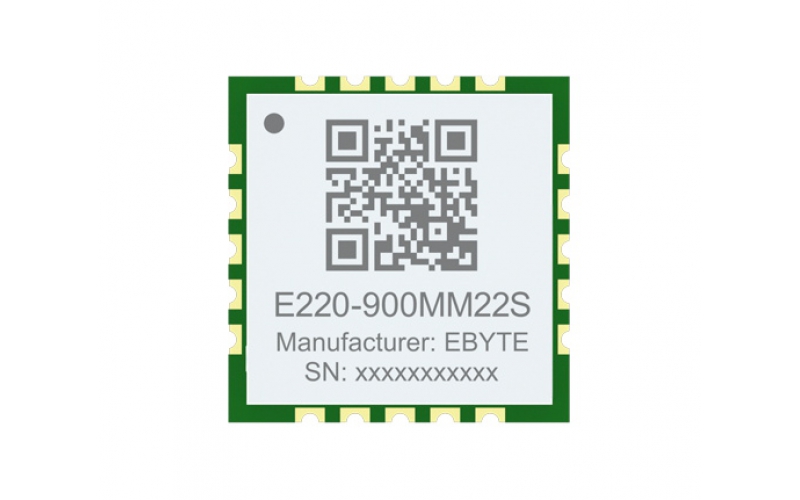

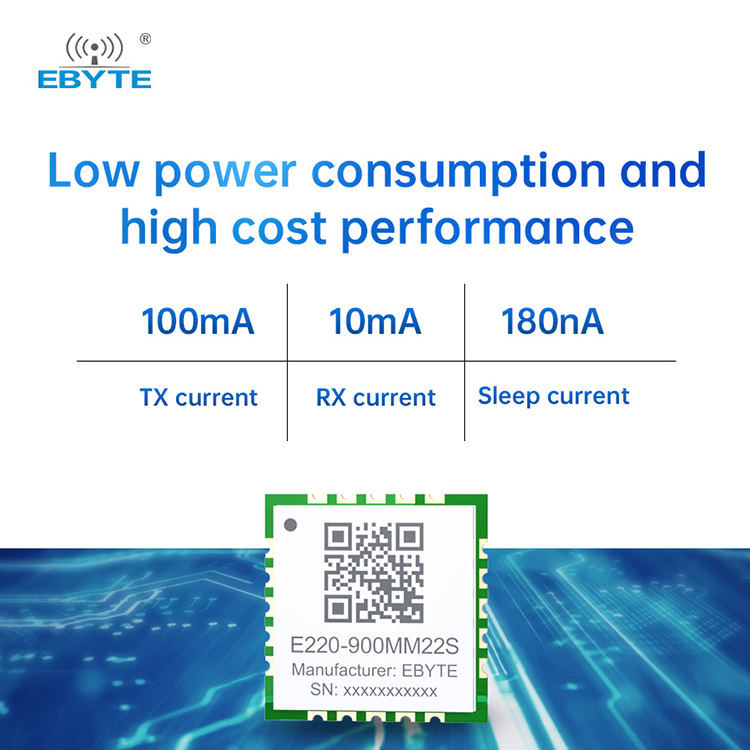

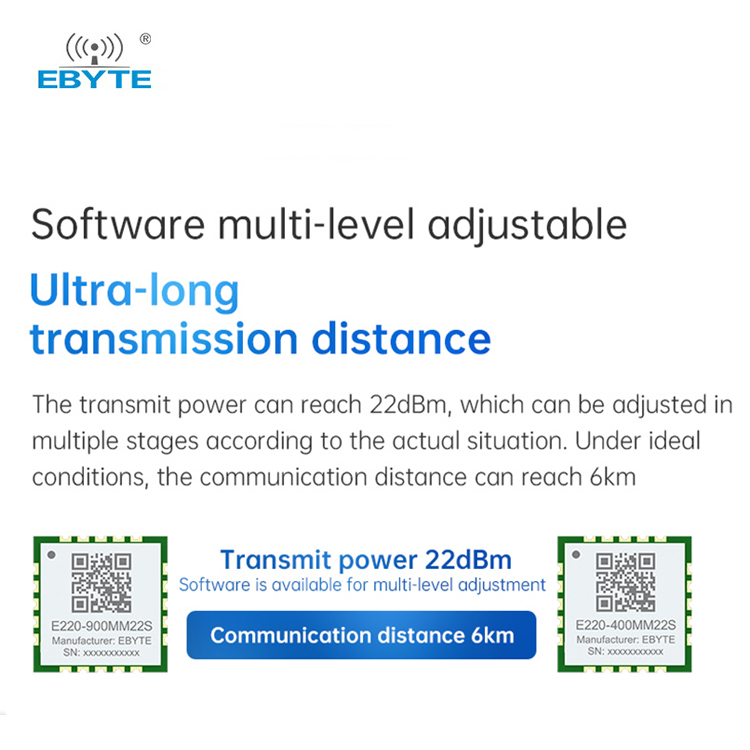

Pin No. | Item
| Direction | Description
|
1 | VCC | - | Power supply, range 1.8V~3.7V (recommended to add external ceramic filter capacitor) |
2 | GND | -
| Ground wire, connected to the power reference ground |
3 | NRST | Input | NRST Input Chip reset trigger input pin, active low |
4 | NC | -
| -
|
5 | NC
| - | -
|
6 | ANT
| -
| RF interface, stamp hole |
7 | GND
| - | Ground wire, connected to the power reference ground |
8 | NC
| -
| -
|
9 | TXEN
| Input | RF switch launch control pin, connected to external microcontroller IO or DIO2, active high |
10 | RXEN
| Input | RF switch receiving control pin, connected to external microcontroller IO, active high |
11 | BUSY | Output | Used for status indication (see LLCC68 manual for details) |
12 | MISO
| Output | SPI data output pin |
13 | MOSI
| Input | SPI data input pin |
14 | NSS
| Input | Module chip select pin for starting an SPI communication |
15 | SCK
| Input | SPI clock input pin |
16 | GND
| - | Ground wire, connected to the power reference ground |
17 | NC
| -
| -
|
18 | DIO3
| Input/Output | Configurable general-purpose IO port (see LLCC68 manual for details) |
19 | DIO2
| Input/Output | Configurable general-purpose IO port (see LLCC68 manual for details) |
20 | DIO1 | Input/Output | Configurable general-purpose IO port (see LLCC68 manual for details) |
