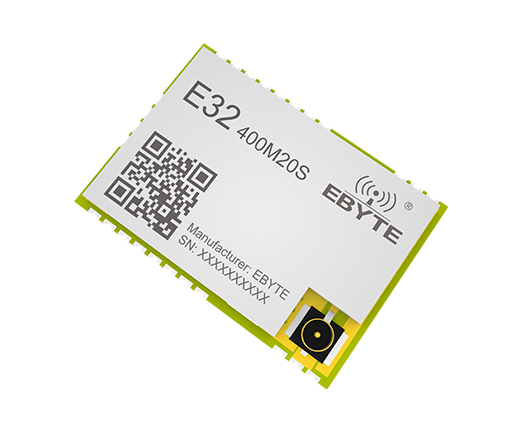

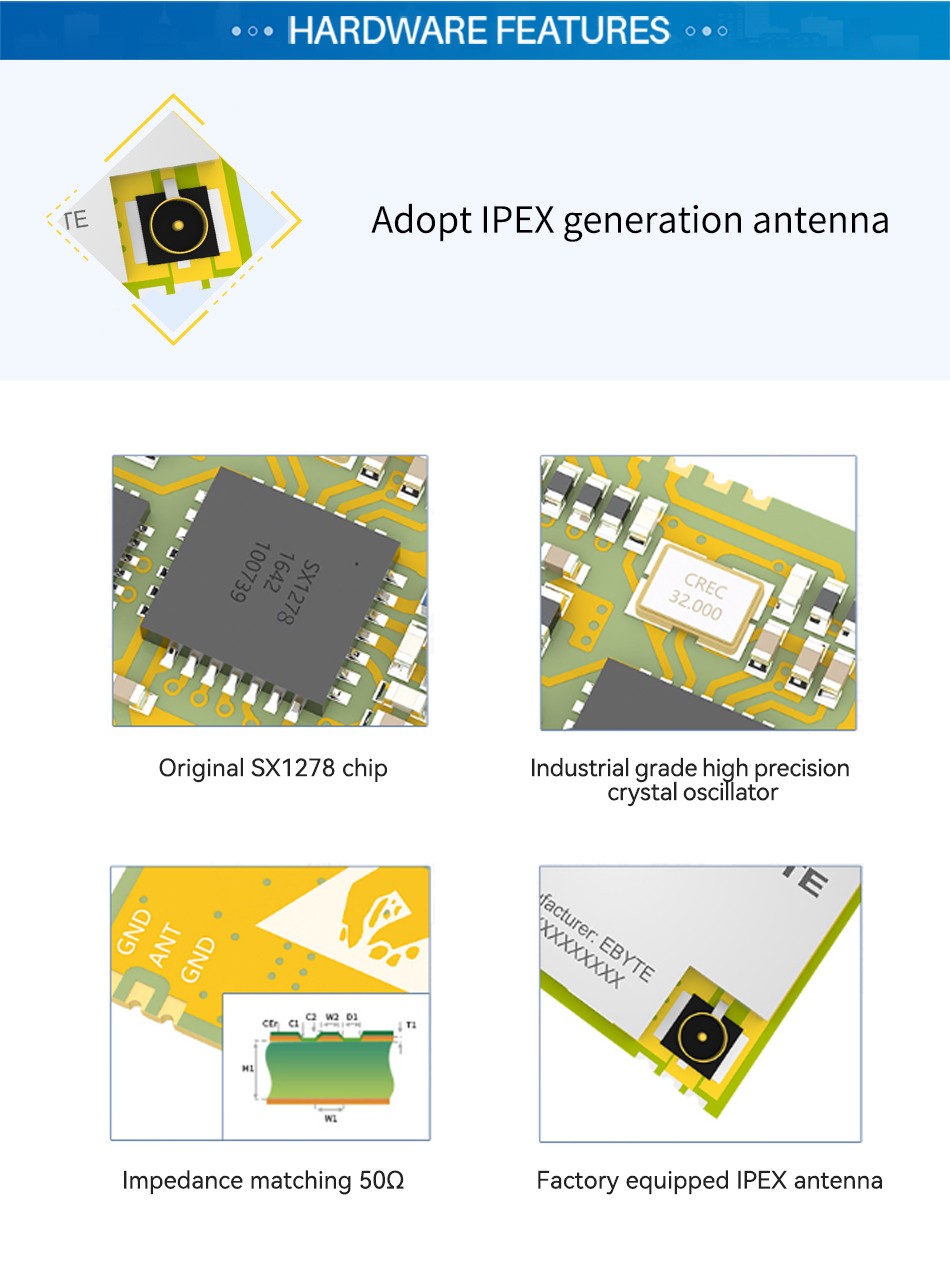

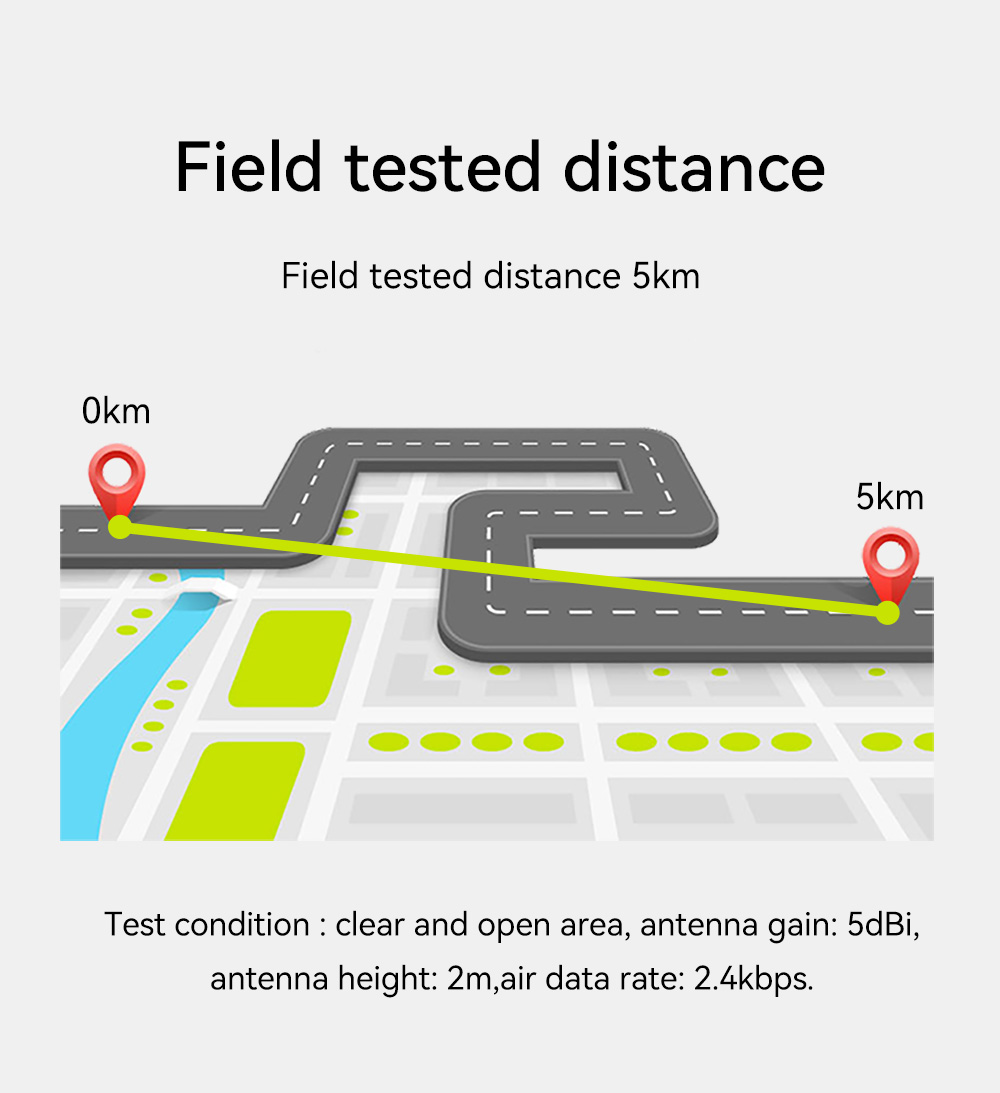

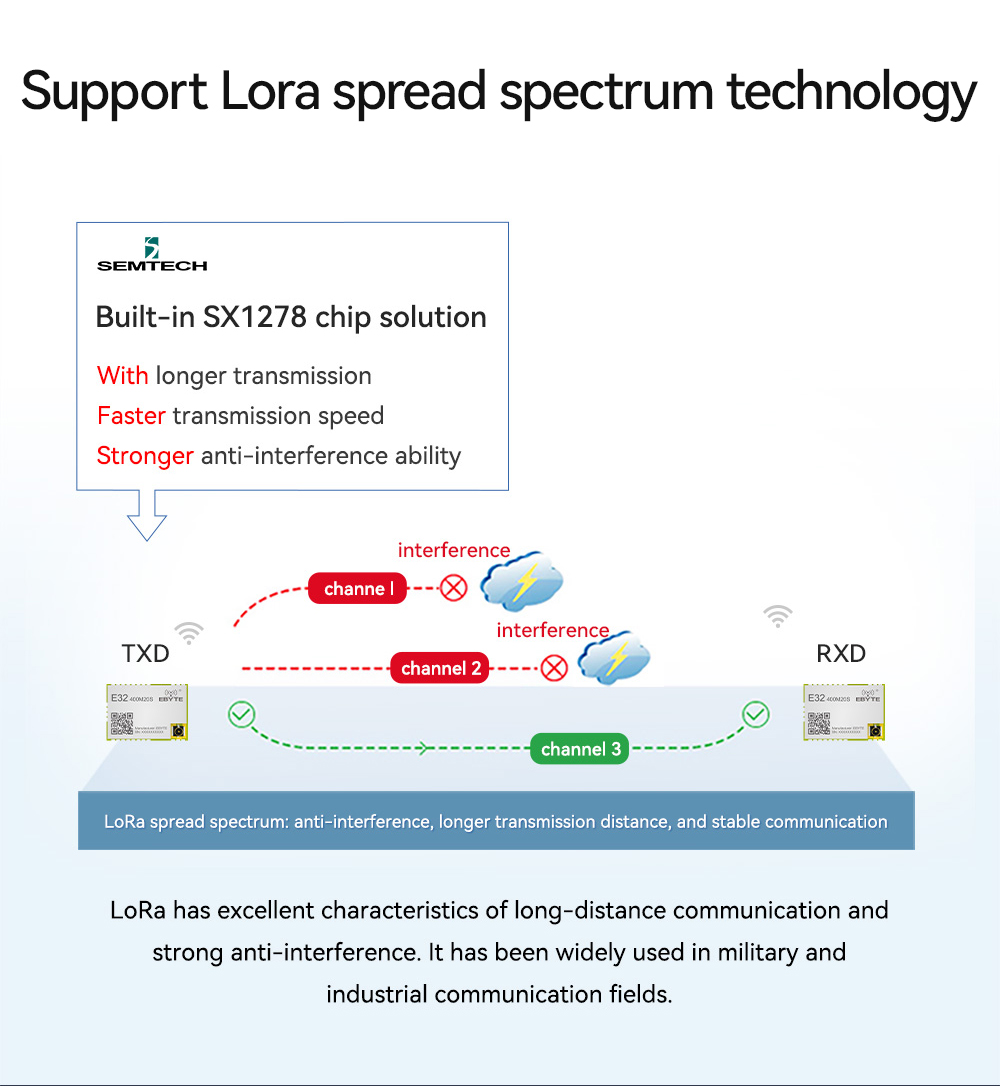

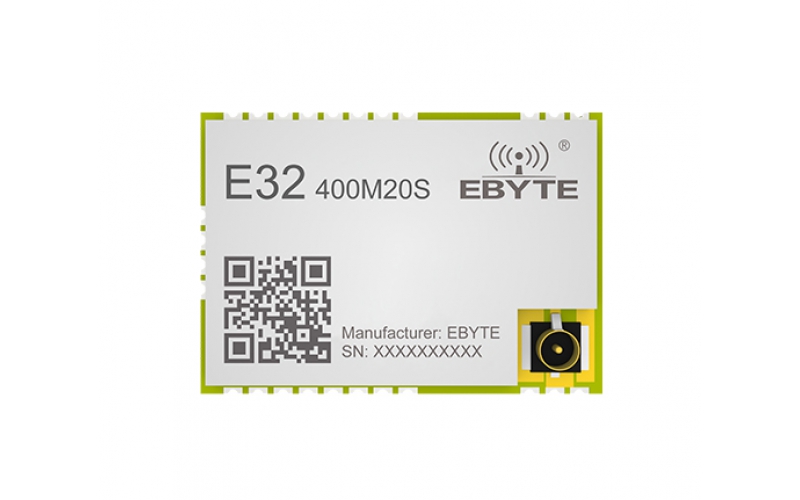

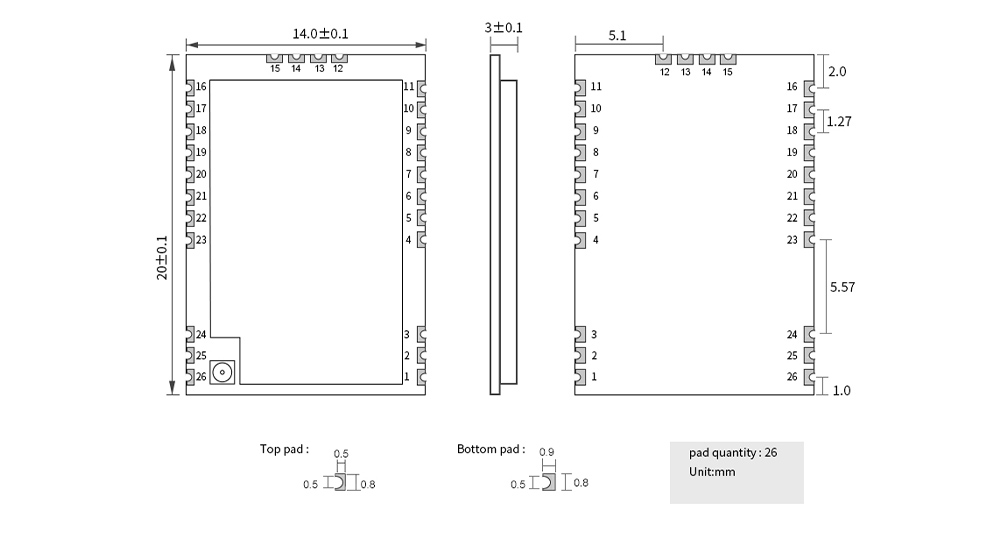

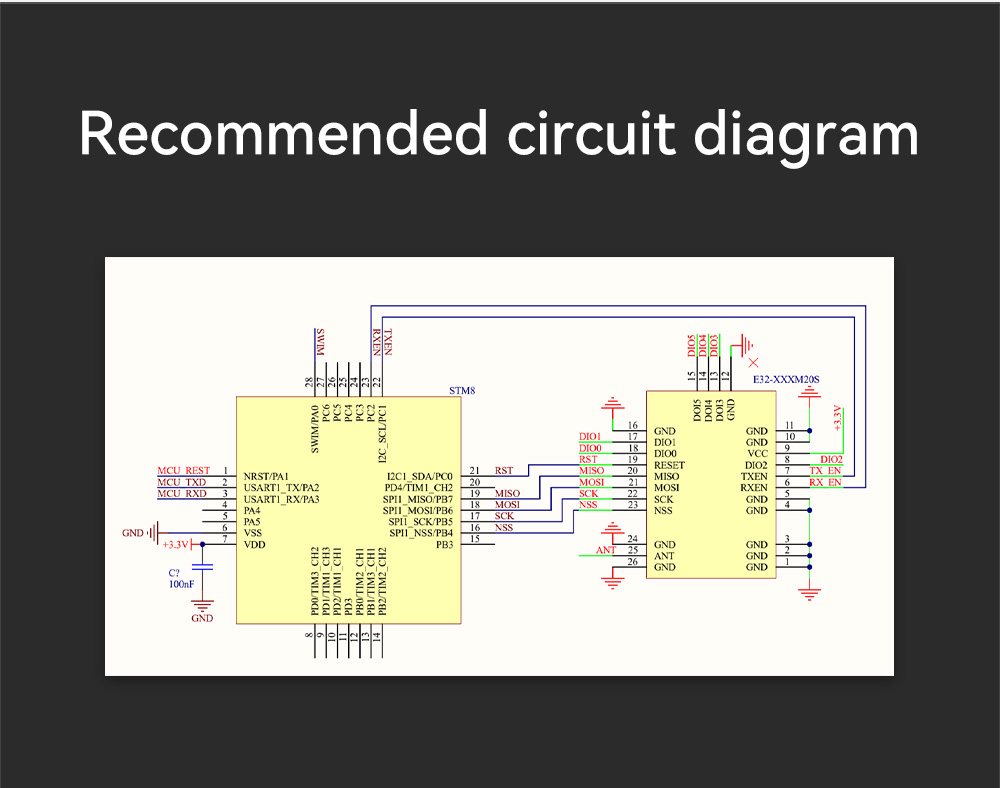

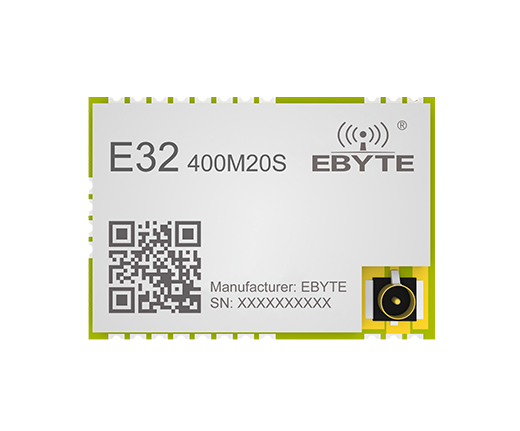

1 | GND | - | Ground |
|
2 | GND | - | Ground |
|
3 | GND | - | Ground |
|
4 | GND | - | Ground |
|
5 | GND | - | Ground |
|
6 | RXEN | Input | RF switch receiving control pin, connected to external MCU IO, high level effective |
|
7 | TXEN | Input | RF switch receiving control pin, connected to external MCU IO, high level effective |
|
8 | DIO2 | Input/Output | General IO port (see SX1276 manual for details) |
|
9 | VCC | - | Power supply, range 3.3 ~ 5.5V (external ceramic filter capacitor is recommended) |
|
10 | GND | - | Ground |
|
11 | GND | - | Ground |
|
12 | GND | - | Ground |
|
13 | DIO3 | Input/Output | General IO port (see SX1276 manual for details) |
|
14 | DIO4 | Input/Output | General IO port (see SX1276 manual for details) |
|
15 | DIO5 | Input/Output | General IO port (see SX1276 manual for details) |
|
16 | GND | - | Ground |
|
17 | DIO1 | Input/Output | General IO port (see SX1276 manual for details) |
|
18 | DIO0 | Input/Output | General IO port (see SX1276 manual for details) |
|
19 | RST | Input | Chip reset trigger input pin |
|
20 | MISO | Output | SPI data output pin |
|
21 | MOSI | Input | SPI data output pin |
|
22 | SCK | Input | SPI data output pin |
|
23 | NSS | Input | the module chip selects the pin used to start an SPI communication |
|
24 | GND | - | Ground |
|
25 | ANT | - | Antenna interface, Sample hole (50Ω characteristic impedance) |
|
26 | GND | - | Ground |
|
