[Frequency]：160~173MHz
[Power]：21~30dBm
[Distance]：8.0km
[Interface]：UART
[Weight]：8.2±0.1g

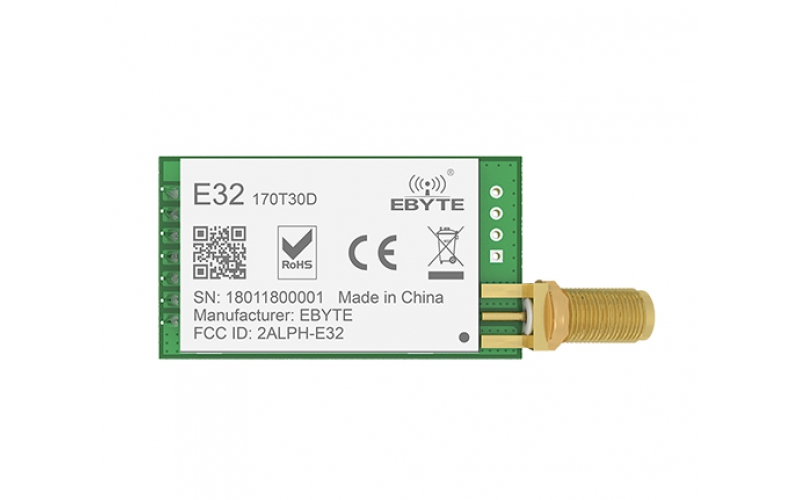

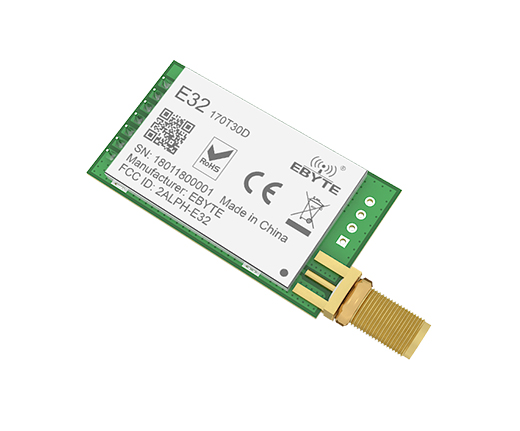

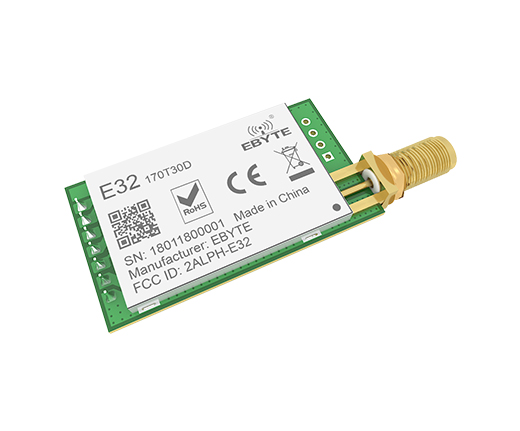

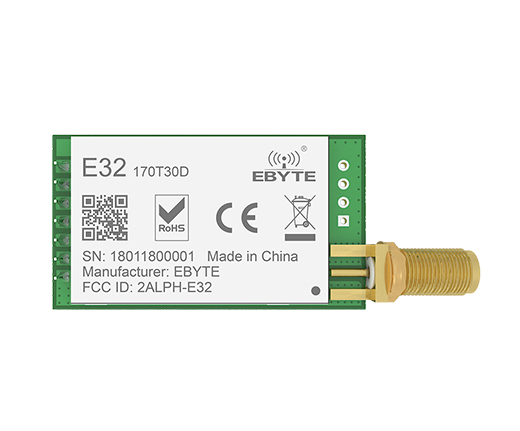

[Introduction]：E32-170T30D is a 1W wireless transceiver module based on SEMTECH's LoRa solution. It has an operating frequency of 160 ~ 173.5MHz, transparent transmission, TTL level, and is compatible with 3.3V. E32-170T30D is a 1W wireless transceiver module using LoRa spread spectrum technology, with an operating frequency of 160 ~ 173.5MHz.
| RF Parameter | Value | Remark |
|---|---|---|
| Working frequency | 160~173 MHz | Default: 170MHz |
| Transmitting power | 21~30 dBm | Default: 30dBm（About 1W） |
| Receiving sensitivity | -147 dBm | Air data rate: 0.3kbps |
| Air data rate | 0.3k~9.6kbps | Default: 2.4kbps |
| Test distance | 8000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,air data rate: 2.4kbps |
| Hardware Parameter | Value | Remark |
|---|---|---|

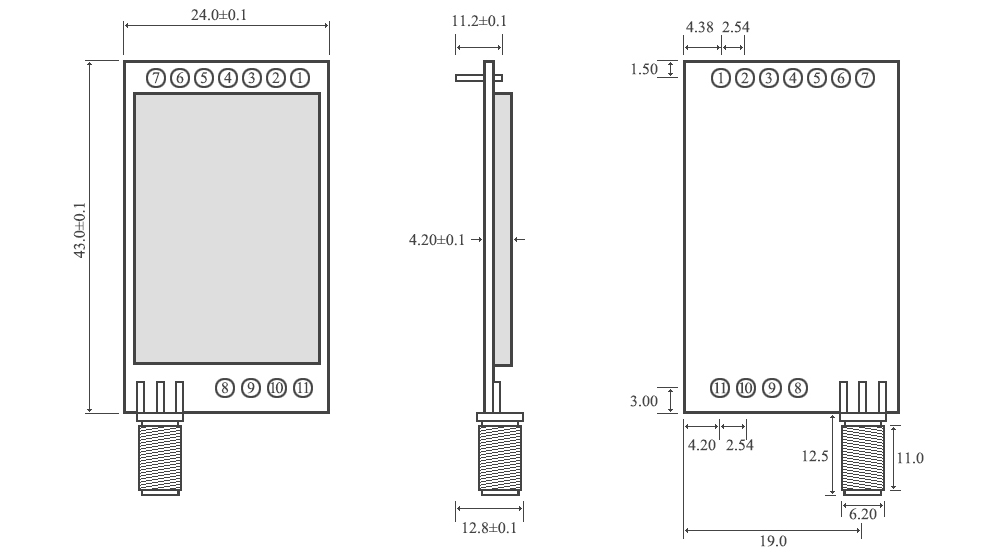

| Size | 24 * 43 mm | Without SMA |
| Antenna type | SMA-K | |
| Communication interface | UART | Baud rate: 1200~115200, default: 9600 |
| Package | DIP | |
| Buffer | 512 bytes buffer | Automatically sub-packaging with 58 bytes per package |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|
| Power supply | 3.3 | 5.0 | 5.2 | V | |
| Communication level | 2.5 | 3.3 | 3.6 | V | |
| Transmitting current | 630 | 680 | 750 | mA | 30dBm（1W） |
| Receiving current | 21 | 22 | 23 | mA | |
| Sleep current | 4 | 5 | 6 | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
| Pin No | Pin Item | Pin Direction | Pin Application |
|---|---|---|---|
| 1 | M0 | Input（weak pull-up） | Work with M1& decide the four operating modes. (Floating is not allowed, can be ground) |
| 2 | M1 | Input（weak pull-up） | Work with M0 & decide the four operating modes. (Floating is not allowed, can be ground) |
| 3 | RXD | Input | TTL UART inputs, connects to external TXD (MCU, PC) output pin.Can be configured as open-drain or pull-up input. |
| 4 | TXD | Output | TTL UART outputs, connects to external RXD (MCU,PC) input pin.Can be configured as open-drain or push-pull output |
| 5 | AUX | Output | To indicate module's working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as open-drain output or push-pull output. (Floating is allowed) |
| 6 | VCC | Input | Power supply 3.3V~5.2V DC |
| 7 | GND | Input | Ground |
| 8 | Fixing hole | - | Fixing hole |
| 9 | Fixing hole | - | Fixing hole |
| 10 | Fixing hole | - | Fixing hole |
| 11 | Fixing hole | - | Fixing hole |
