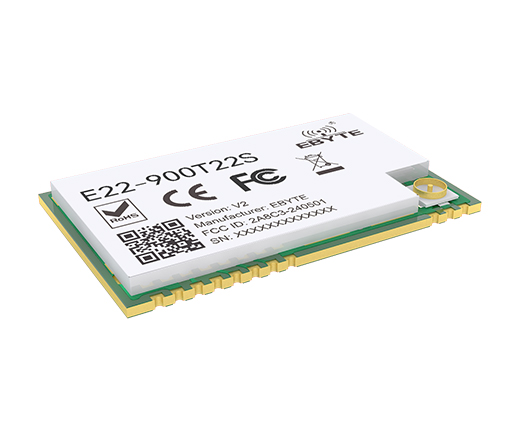

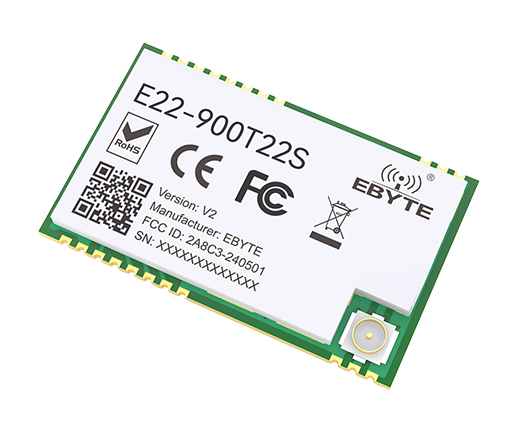

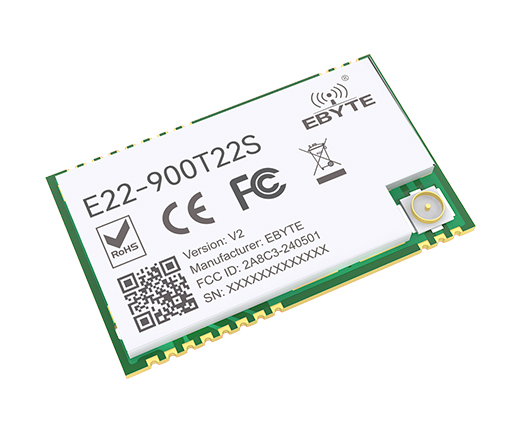

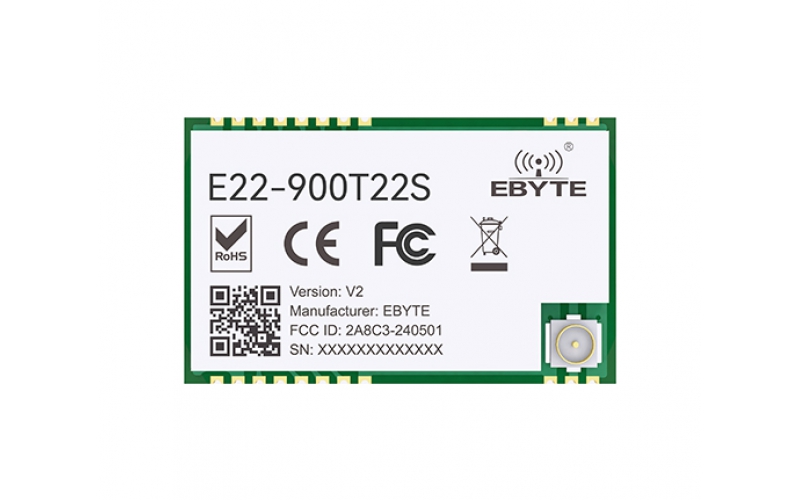

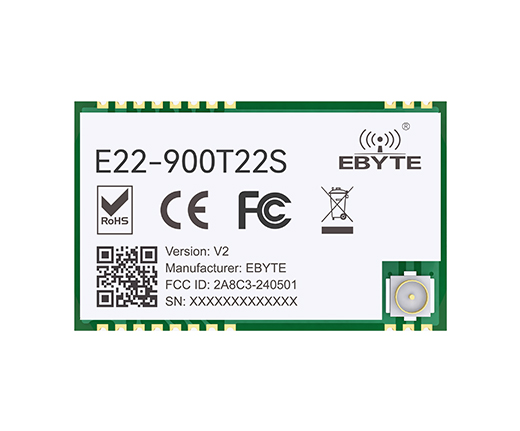

E22-900T22S Ebyte UART 5Km Range 868Mhz 915Mhz 22dBm SMD CE FCC LoRa Wireless Transmitter RF Module Semtech LoRa solution
E22-900T22S Ebyte UART 5Km Range 868Mhz 915Mhz 22dBm SMD CE FCC LoRa Wireless Transmitter RF Module Semtech LoRa solution
E22-900T22S Ebyte UART 5Km Range 868Mhz 915Mhz 22dBm SMD CE FCC LoRa Wireless Transmitter RF Module Semtech LoRa solution
E22-900T22S Ebyte UART 5Km Range 868Mhz 915Mhz 22dBm SMD CE FCC LoRa Wireless Transmitter RF Module Semtech LoRa solution

E22-900T22S Ebyte UART 5Km Range 868Mhz 915Mhz 22dBm SMD CE FCC LoRa Wireless Transmitter RF Module Semtech LoRa solution

[Frequency]：850.125~930.125MHz

[Power]：22dBm

[Distance]：5km

[Size]：16*26mm

[Product weight]：2.1±0.1g

[Introduction]：E22-900T22S is a new generation of LoRa wireless module. It is a wireless module based on the UART serial communication of SEMTECH's LoRa solution. The LoRa module has a variety of transmission methods and works in the (850.125~930.125MHz) frequency band (default 868.125MHz). The LoRa expansion frequency technology, TTL level output, compatible with 3.3V and 5V IO port voltages.

Send Inquiry Online Inquiry

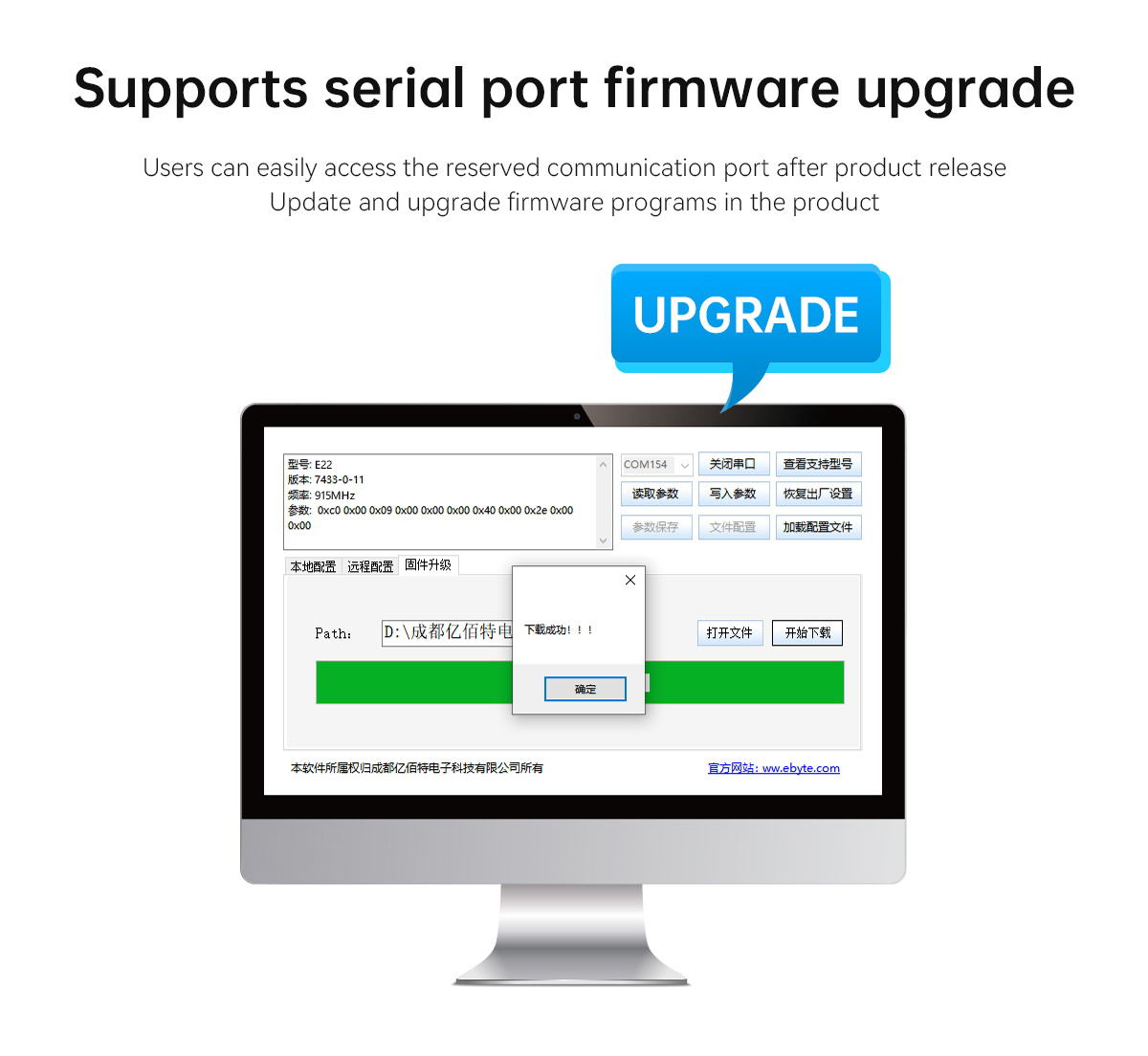

ZZteco

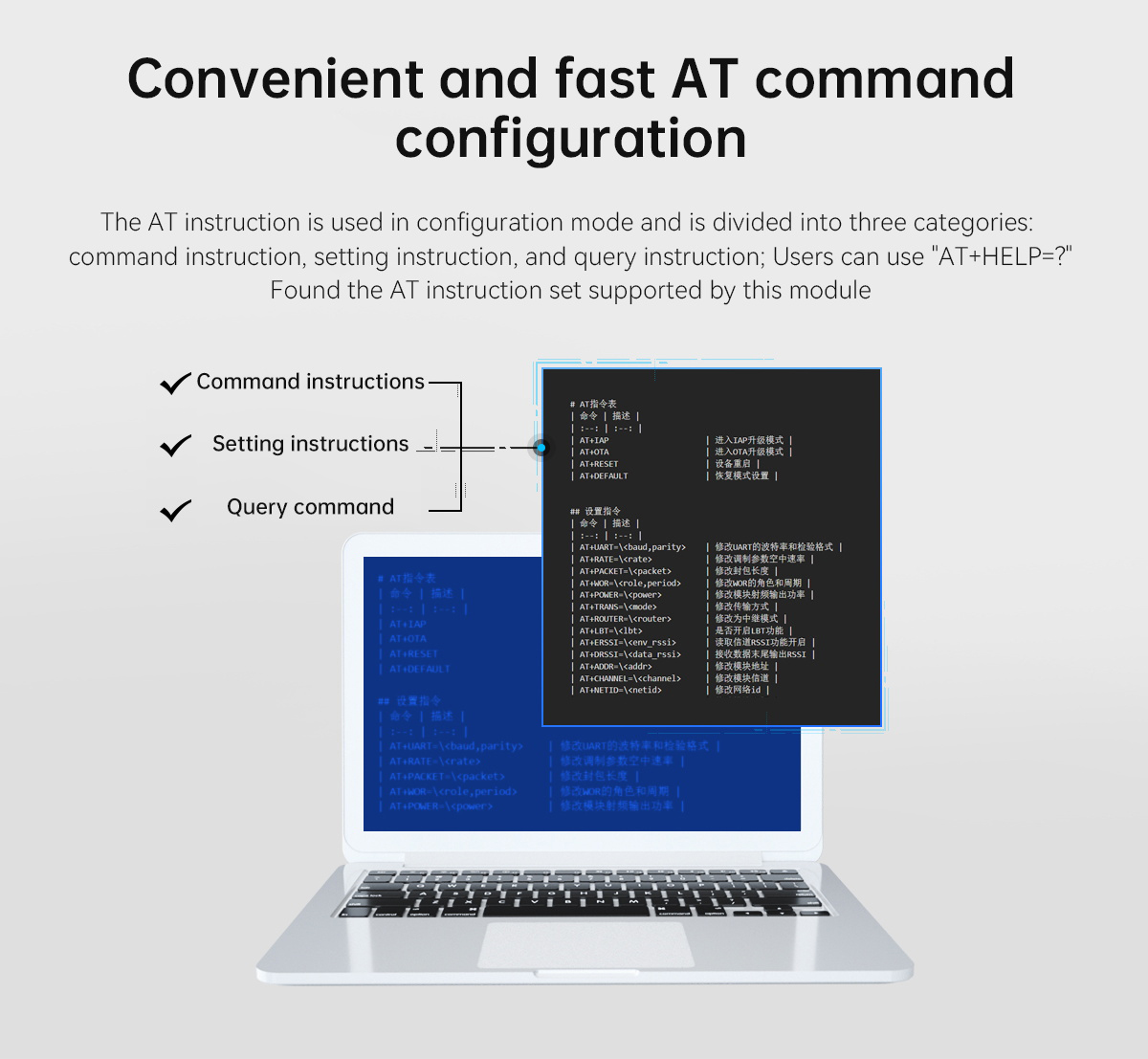

ZZteco

ZZteco

ZZteco

ZZteco

ZZteco


RF ParameterValueRemark
Working frequency band850.125~930.125MHzSupport ISM band
Transmitting power22 dBmMax. Power 160mW
Receiving sensitivity-147dbm-
Air speed2.4 K ~62.5KBPSUser programming control
Measured distance5000 metersClear open environment, maximum power, antenna gain 5dBi, height 2.5m
Hardware ParameterValueRemark
Size16 * 26 mm

Antenna form IPEX/Stamp holeEquivalent impedance is about 50 ω
Communication portUART serial portTTL level
PackagePatch type

Electrical ParameterMin.Typ.Max.UnitCondition
Power supply voltage2.35.05.5V

Communication level-3.3-V

Emission current-155-MA22dBm (160mW）

Receiving current-11-


MADormant current-2.0-uA

Working temperature-4020
+85℃
Working humidity106090%

Storage temperature-4020+125℃


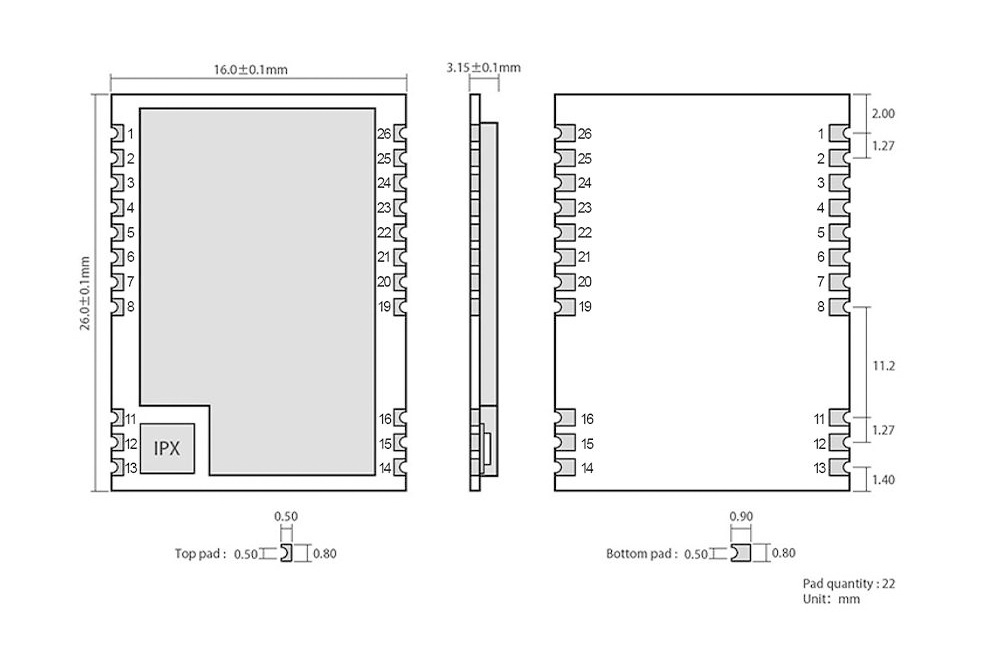

ZZteco

No.NameDirectionFunction
1NRSTInput-Module reset pin, low reset
2GND
Ground
3GND

4NC

5NC

6NC

7NC

8GND
Ground
11GND
Ground
12ANT
Antenna
13GND
Ground
14GND
Ground
15GND
Ground
16GND
Ground
19GND
Ground
20M0Input（weak pull-up）Work with M1 to decide 4 working modes of module (not suspended, if not used, could be grounded).
21M1Input（weak pull-up）Work with M0 to decide 4 working modes of module (not suspended, if not used, could be grounded).
22RXDInputTTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input.
23TXDOutputTTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output
24AUXOutputTo indicate module ’ s working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as push-pull output (suspending is allowed).
25VCC
Power supply ：2.3~ 5.2V DC
26GND
Ground


label: LoRa solution UART
