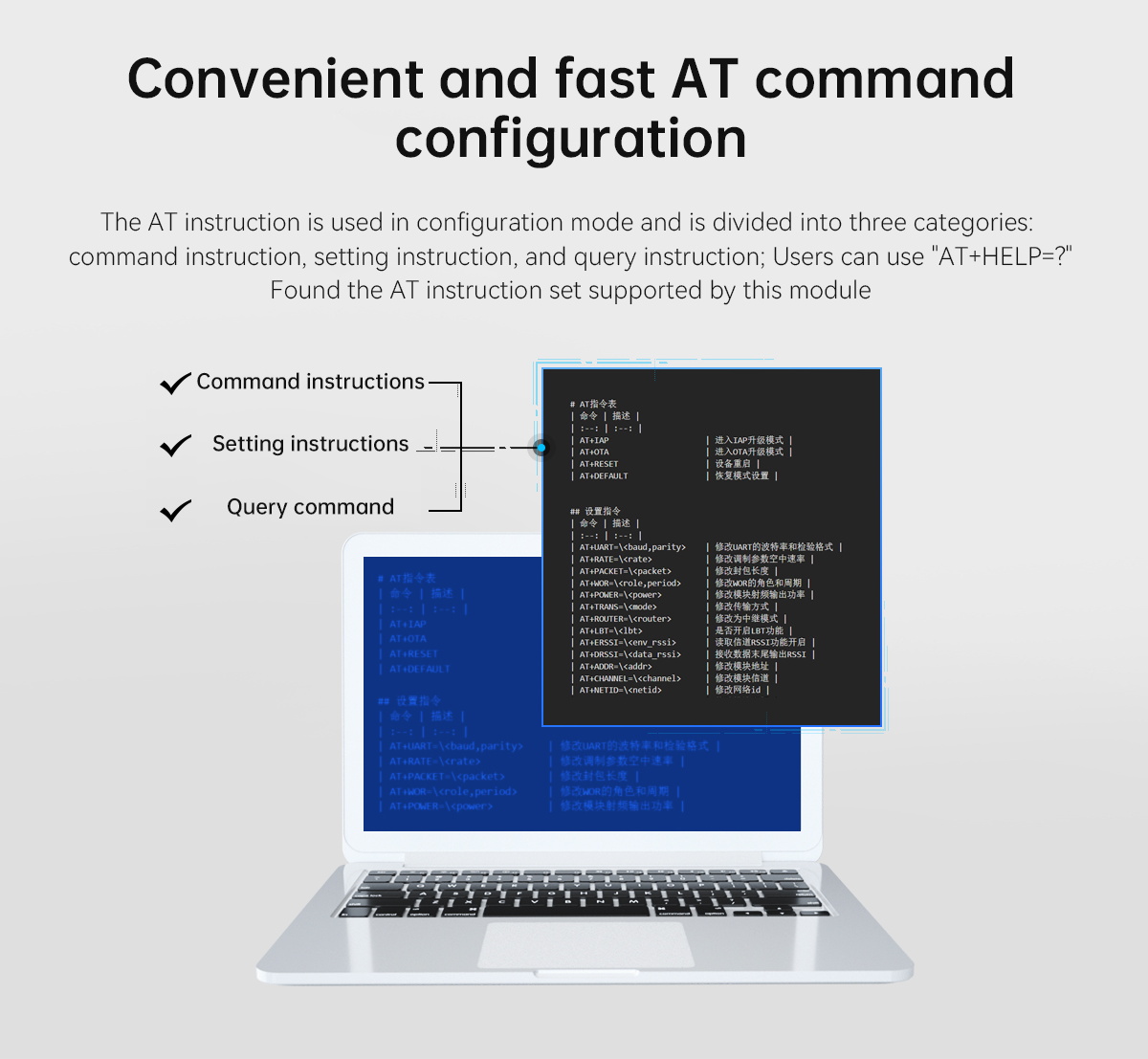

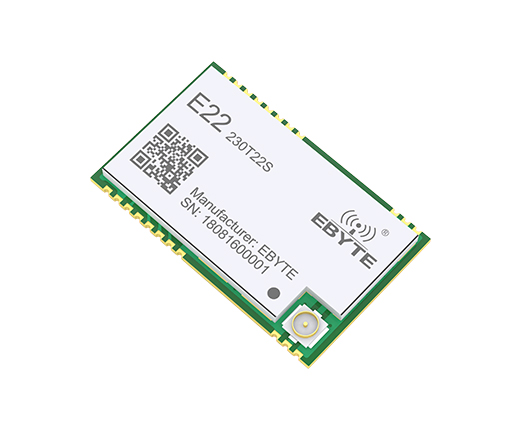

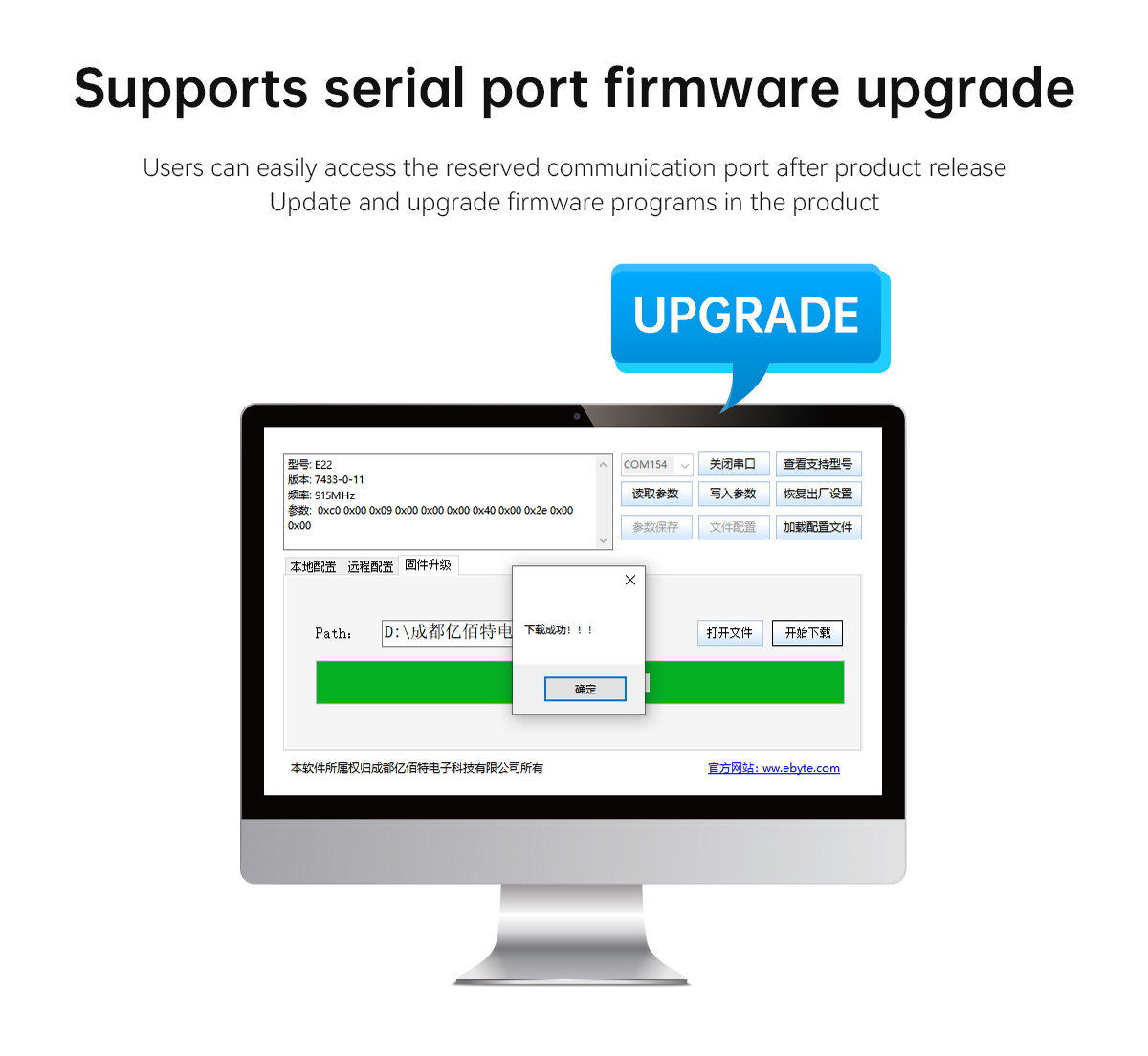

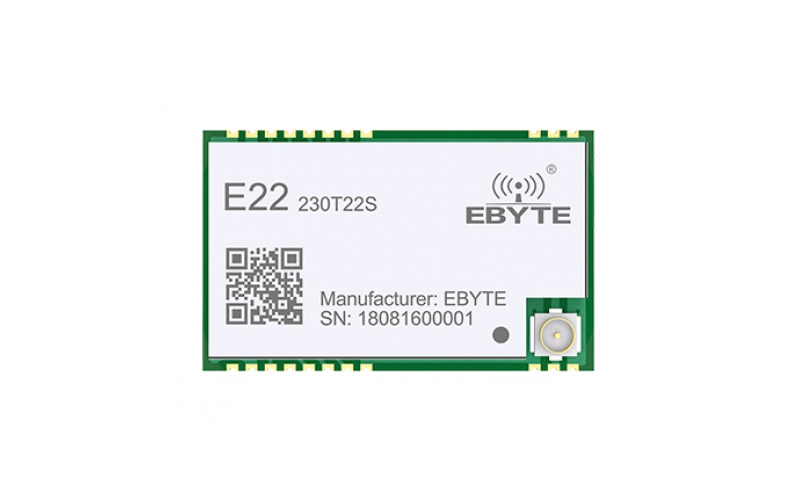

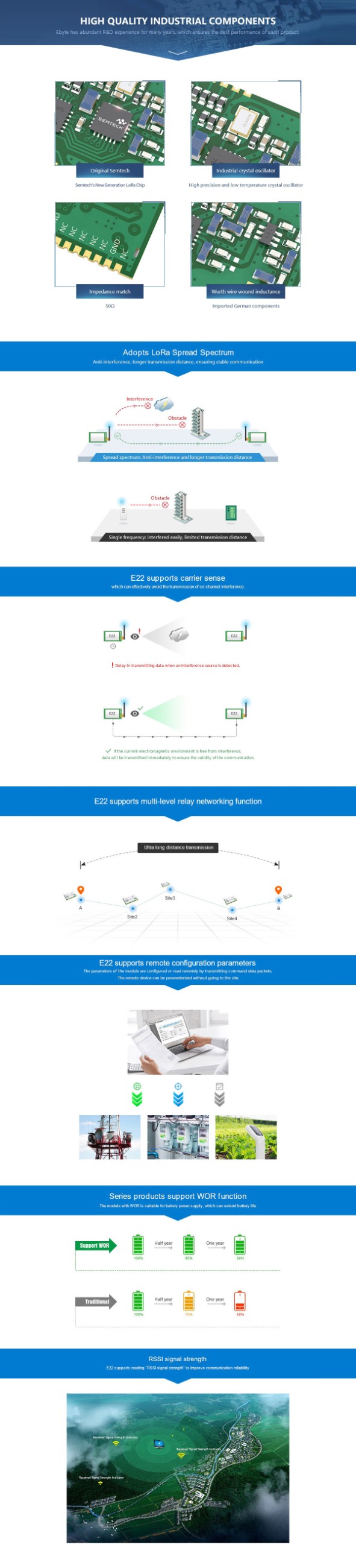

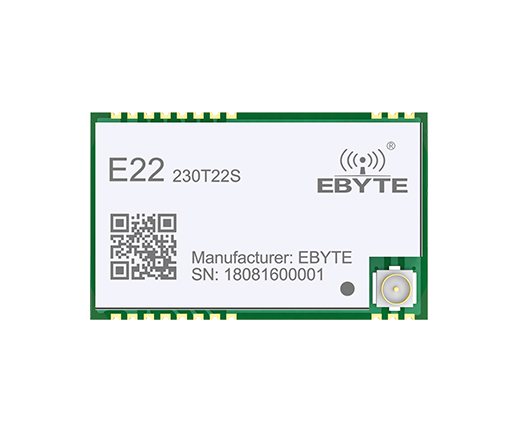

E22-230T22S Ebyte Semtech LoRa solution UART 5Km Range 230MHz 22dBm SMD 16*26mm CE RoHs FCC TCXO External and UFL Antenna LoRa Wireless

ZZteco

RF Parameter	Value	Remark
Working frequency	220.125~236.125 MHz	Default: 230.125MHz
Transmitting power	22 dBm	Max. Power (160mW)
Receiving sensitivity	-138 dBm	-
Air data rate	0.3k~15.6kbps	-
Test distance	5000m	In open and clear air, with maximum power, 5 dBi antenna gain, height of 2m

Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	2.3	5.0	5.5	V	-
Communication level	3.0	3.3	5.2	V	-
Transmitting current	97	107	119	mA	22dBm（160mW）
Receiving current	10	11	12	mA	-
Sleep current	1.6	2.0	2.4	μA	-
Operating temperature	-40	20	+85	℃	-
Operating humidity	10	60	90	%	-
Storage temperature	-40	20	+125	℃	-

ZZteco

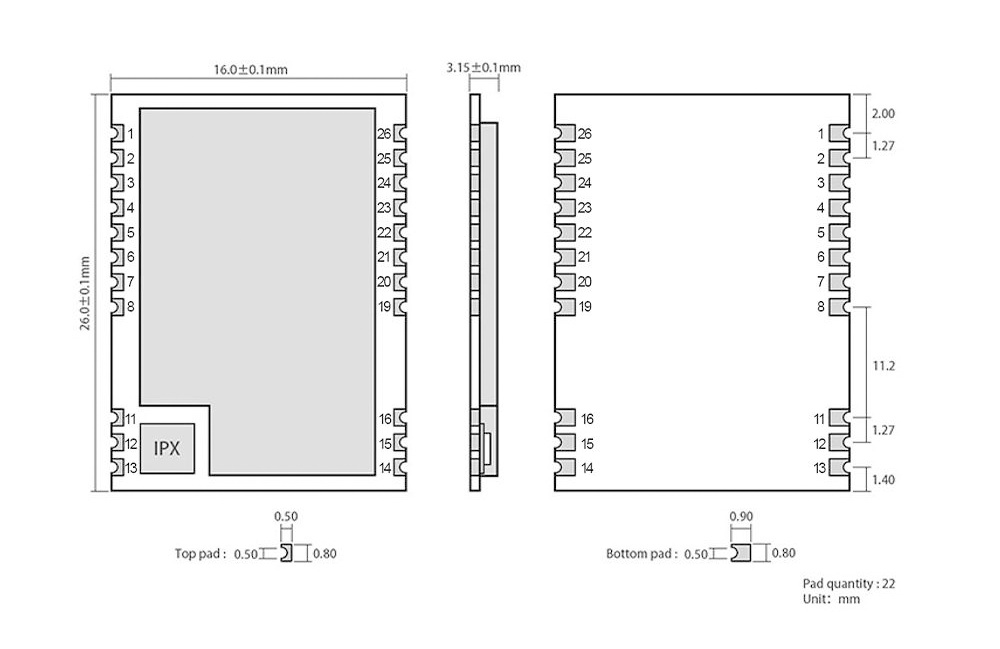

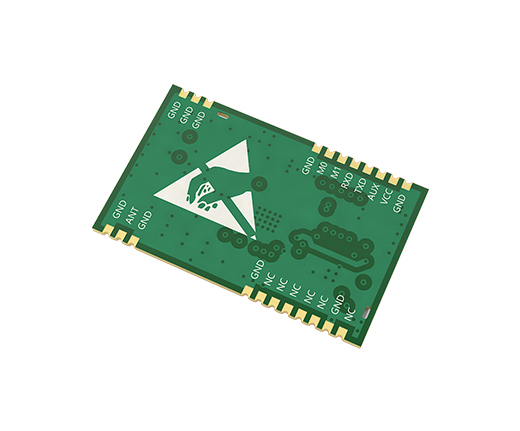

No.	Name	Direction	Function
1	NC		N/A
2	GND	-	Module ground
3	NC	-	N/A
4	NC	-	N/A
5	NC	-	N/A
6	NC	-	N/A
7	NC	-	N/A
8	GND	-	Module ground
11	GND	-	Module ground
12	ANT	Output	Antenna interface (high frequency signal output, 50 ohm characteristic impedance)
13	GND	-	Module ground
14	GND	-	Module ground
15	GND	-	Module ground
16	GND	-	Module ground
19	GND	-	Module ground
20	M0	Input（weak pull-up）	Work with M1 to decide 4 working modes of module (not suspended, if not used, could be grounded)
21	M1	Input（weak pull-up）	Work with M0 to decide 4 working modes of module (not suspended, if not used, could be grounded).
22	RXD	Input	TTL UART inputs, connects to external (MCU, PC) TXD output pin.
23	TXD	Output	TTL UART inputs, connects to external (MCU, PC) RXD output pin
24	AUX	Output	Used to indicate the working state of the module; The user wakes up the external MCU and outputs low level during power on self-test initialization; (can be suspended)
25	VCC	-	Module power supply positive reference，Power supply：2.3～5.5V DC
26	GND	-	Module ground
