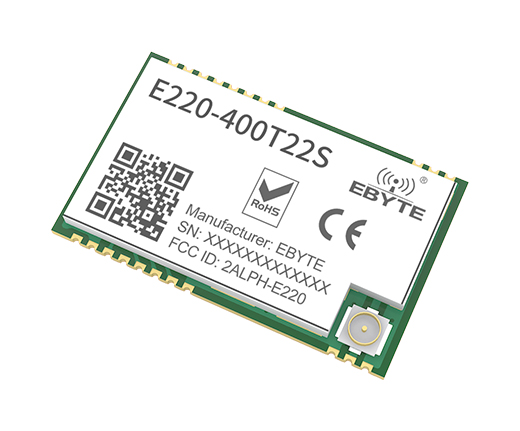

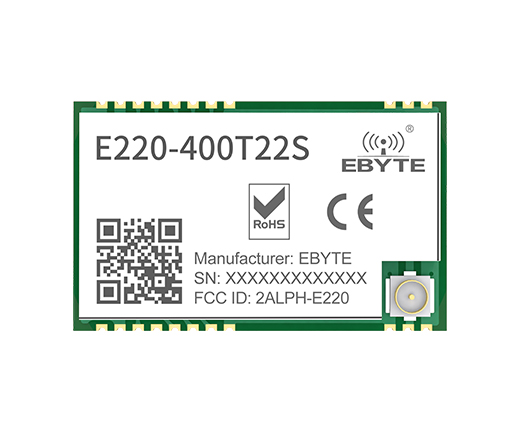

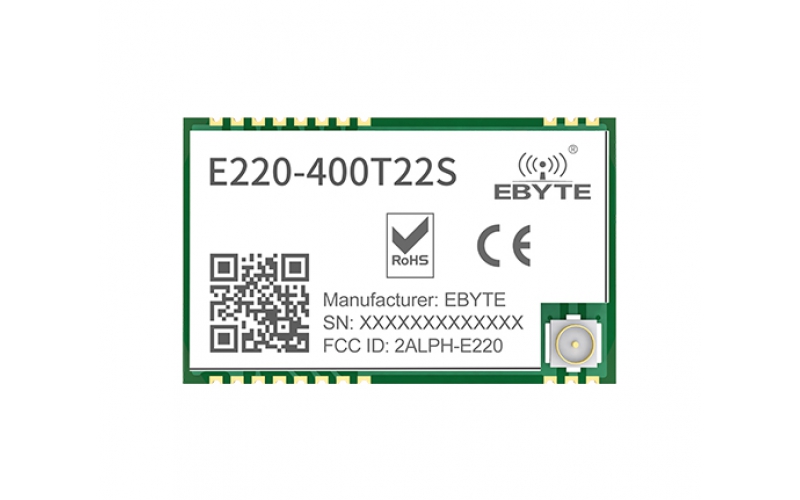

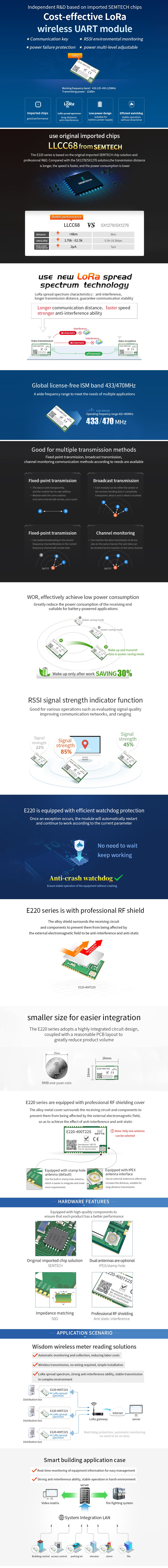

E220-400T22S TTL level output  E220-400T22S LoRa wireless serial port module E220-400T22S TTL level output E220-400T22S LLCC68 LoRa Wireless RF Module 22dBm ISM band 433MHz LoRa Spread Spectrum SMD I

ZZteco

Main parameter	Performance	Remark
Operating frequency	410.125~493.125MHz	Support ISM band
Tx power	22 dBm	-
Receiving sensitivity	-129dbm	-
Air data rate	2.4k~62.5kbps	Controlled via user’s programming
Distance for reference	5Km	Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate: 2.4kbps

Main parameter	Min.	Typ.	Max.	Unit	Remark
Operating voltage	2.3	3.3	5.5	V	≥3.3 V ensures output power
Communication level	-	3.3	-	V	For 5V TTL, it may be at risk of burning down
TX current	-	110	-	mA	Instant power consumption @22dBm
RX current	-	11	-	mA	-
Sleep current	-	2	-	uA	Software is shut down
Operating temperature	-40	20	+85	℃	Industrial design

ZZteco

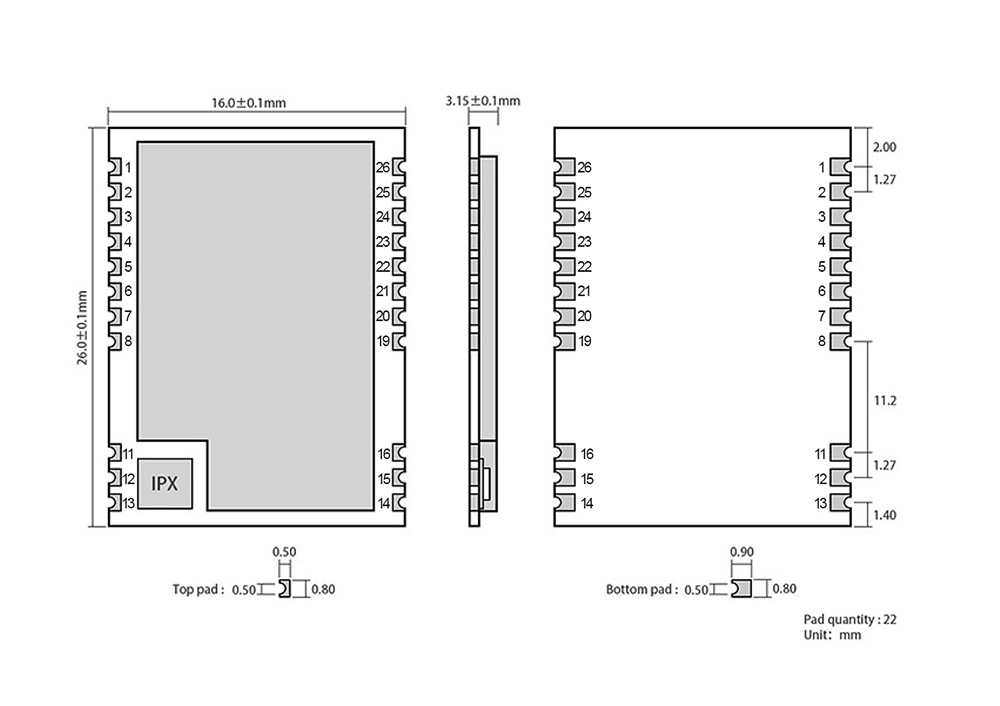

No.	Name	Direction	Features
1	NC	-	Empty feet
2	GND	-	Module ground wire
3	NC	-	Empty feet
4	NC	-	Empty feet
5	NC	-	Empty feet
6	NC	-	Empty feet
7	NC	-	Empty feet
8	GND	-	Module ground wire
11	GND	-	Module ground wire
12	ANT	-	antenna
13	GND	-	Module ground wire
14	GND	-	Module ground wire
15	GND	-	Module ground wire
16	GND	-	Module ground wire
19	GND	-	Module ground wire
20	M0	Input (very weak pull-up)	Cooperate with M1 to determine the 4 working modes of the module (cannot be left floating, can be grounded if not used)
21	M1	Input (very weak pull-up)	Cooperate with M0 to determine the 4 working modes of the module (cannot be left floating, can be grounded if not used)
22	RXD	Input	TTL serial port input, connected to the external TXD output pin;
23	TXD	output	TTL serial port output, connected to the external RXD input pin;
24	AUX	output	Used to indicate the working status of the module;

			The user wakes up the external MCU and outputs low level during power-on self-test initialization; (can be left floating)
25	VCC	-	Module power supply positive reference, voltage range: 2.3~5.5V DC
26	GND	-	Module ground wire
