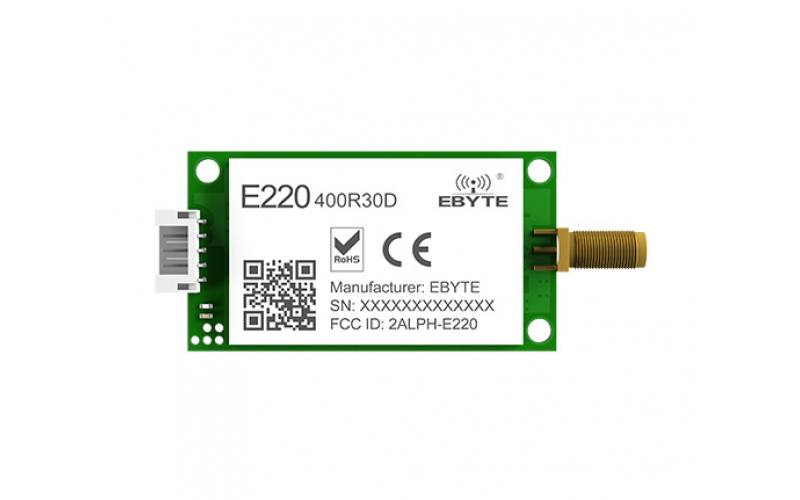

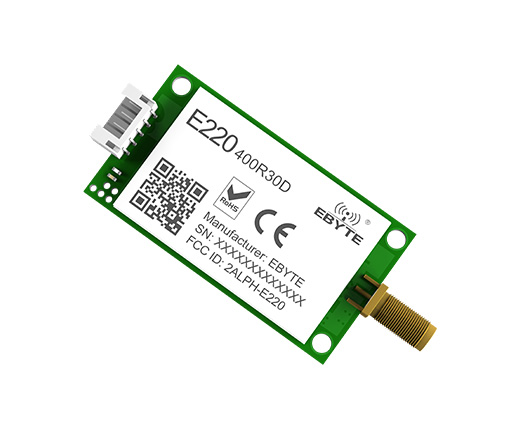

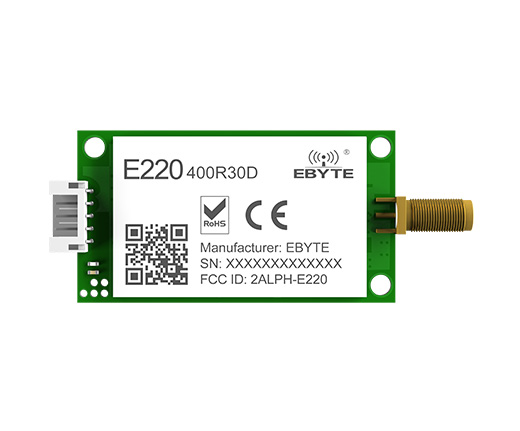

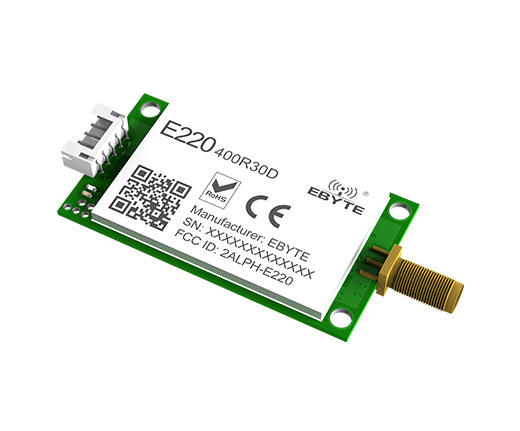

E220-400R30D LLCC68 RS485 Wireless RF Transceiver and Receiver 433MHz 470MHz 30dBm IoT LoRa Spread Spectrum Module Long Range
E220-400R30D LLCC68 RS485 Wireless RF Transceiver and Receiver 433MHz 470MHz 30dBm IoT LoRa Spread Spectrum Module Long Range
E220-400R30D LLCC68 RS485 Wireless RF Transceiver and Receiver 433MHz 470MHz 30dBm IoT LoRa Spread Spectrum Module Long Range

E220-400R30D LLCC68 RS485 Wireless RF Transceiver and Receiver 433MHz 470MHz 30dBm IoT LoRa Spread Spectrum Module Long Range

[IC]：LLCC68

[Frequency]：410.125~493.125MHz

[Power]：30dBm

[Distance]：10km

[Size]：26*48mm

[Product weight]：10.2g±0.1g

[Introduction]：The E220-400R30D uses a new generation of LoRa spread-band technology based on the RS485 module designed for the LLCC68 chip scheme LLCC68 chip scheme with a variety of transmission modes. It operates in the (410.125 to 493.125MHz) frequency (default 433.125MHz) and supports DC 5.0 power supply.

Send Inquiry Online Inquiry

ZZteco

ZZteco

Main parameterparameter DescriptionRemark
Reference distance10kmTest condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate: 250 kbps
Launch length200 ByteThe subcontract 32/64/128/200 bytes can be sent by instruct settings
Cache capacity400 Byte-
ModulationLoRaNew generation of LoRa modulation technology
Communication Interface485 interface485 level
EncapsulatePin-
InterfacePH2.0Space 2.0mm with reserved 2.54mm hole
Outter size26*48mm-
RF interfaceSMA-KThe equivalent impedance is about 50 degrees
Main parameterMinTypeMaxUnitRemark
Operating voltage4.55.05.5V≥5.5 V ensures output power
Communication level---VFor 5V TTL, it may be at risk of burning down
Operating temperature-40-85℃Industrial grade
Operating frequency410.125-493.125MHzSupport ISM band
TX current-630-mAInstant power consumption@30dBm
RX current-19-mA-
Sleep current---uALow power consumption is not supported
Max TX power29.530.030.5dBm-
Receiving sensitivity--129-dBm-124dbm,BW_L=125kHz,SF = 7,LORA TM;
-129dbm,BW_L=125kHz,SF = 9,LORA TM;
-121dbm,BW_L=250kHz,SF = 7,LORA TM;
-129dbm,BW_L=250kHz,SF = 10,LORA TM;
-117dbm,BW_L=500kHz,SF = 7,LORA TM;
-127dbm,BW_L=500kHz,SF = 11,LORA TM;
Air data rate2.4k2.4k62.5kbpsControlled via user’s programming


ZZteco

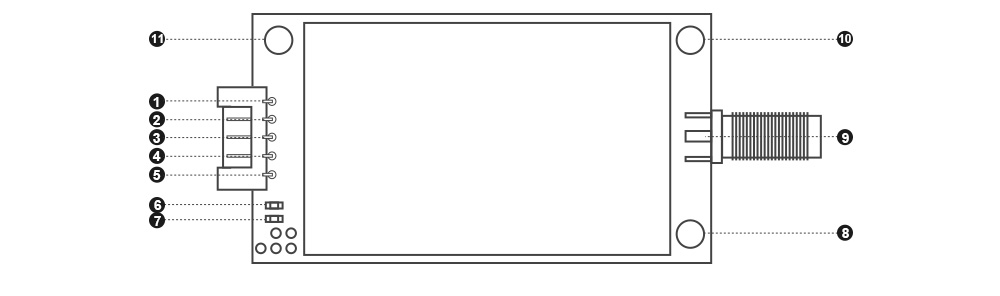

Pin No.ItemDirectionDescription
1VCCInputModule power supply is referenced, voltage range: 4.5 to 5.5V DC
2GNDInputModule ground line
3485AInput/OutputA of the RS485 interface, A of the external RS485 device
4485BInput/OutputB of the RS485 interface, B of the external RS485 device
5STBOutputLow when idle, high for configuration and sending&receiving
6Sending Light-Green, the light flashes when data is sent
7Receiving Light-Blue, the light flashes when data is sent
8Fixed holes-Fixed holes
9RF interface-SMA-K, equivalent impedance is about 50 s
10Fixed holes-Fixed holes
11Fixed holes-Fixed holes
