mainly parameters | Performance | Notes |
Min | Typical | Max |
Power Supply Voltage(V) | 1.8 | 3.3 | 3.7 | ≥3.3V Can ensure the output power |
communication level(V) | - | 3.3 | - | Using 5V TTL may burn out |
Working temperature(°C) | -40 | - | 85 | Industrial grade design |
Working frequency band(GHz) | 410 | 433/470/490 | 493 | Support ISM Frequecy |
Power consumption | Emission current(mA) | - | 100 | - | instantaneous power consumption |
Receives the current(mA) | - | 6.5 | - | - |
Sleep current(μA) | - | 2 | - | software shut off |
Maximum transmitted power(dBm) | 21.4 | 21.5 | 22.3 | - |
Sensitivity of reception(dBm) | -144 | -146 | -147 | air rate is 0.3kbps |
air rate(bps) | 0.6k | - | 300k | User programming control |
0.018k |
| 62.5k | User programming control |
mainly parameters
| Description
| Notes |
Distance | 7000m | Clear and open environment, antenna gain 5dBi, antenna height 2.5m, air speed 0.3kbps. |
FIFO | 256 Byte | Maximum sending length |
Crystal frequency
| 32 MHz | - |
Modulation method | LoRa(recommend) | - |
Encapsulation way | SMD | - |
Interface
| 1.27mm | Stamp hole |
Communication interface | SPI | 0-10Mbps |

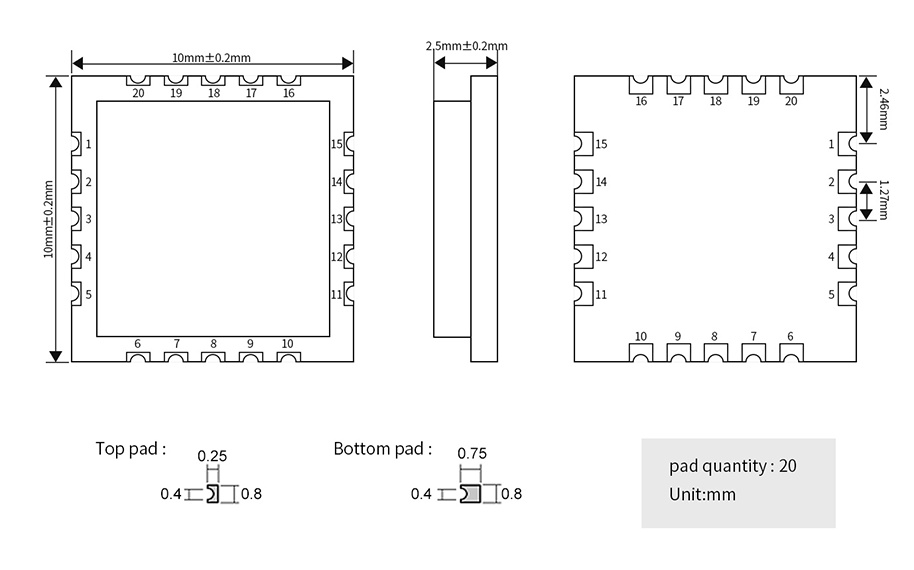

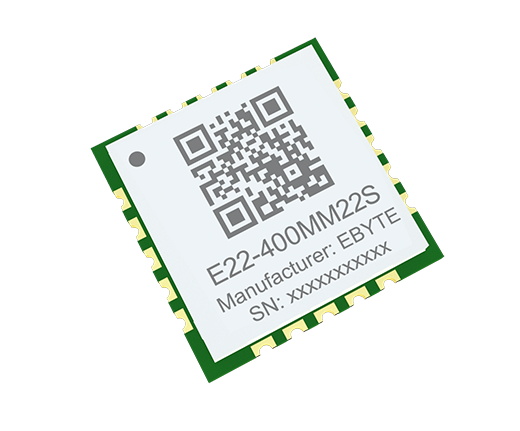

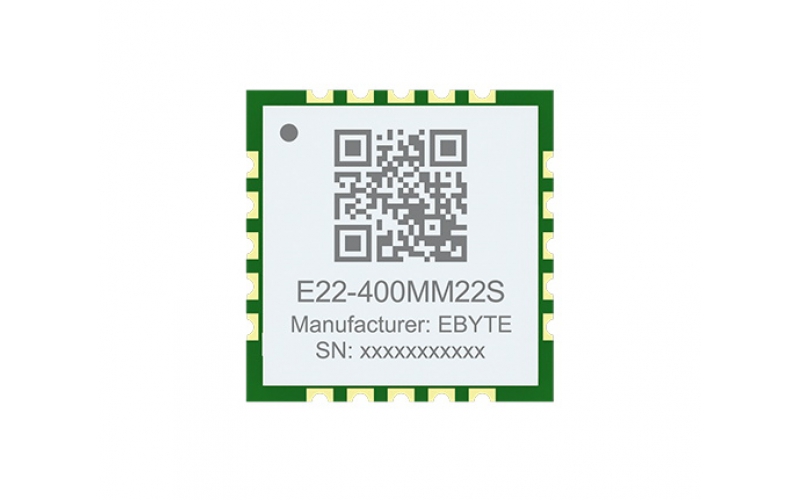

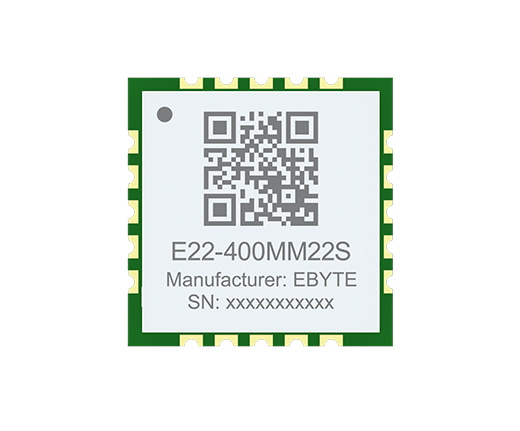

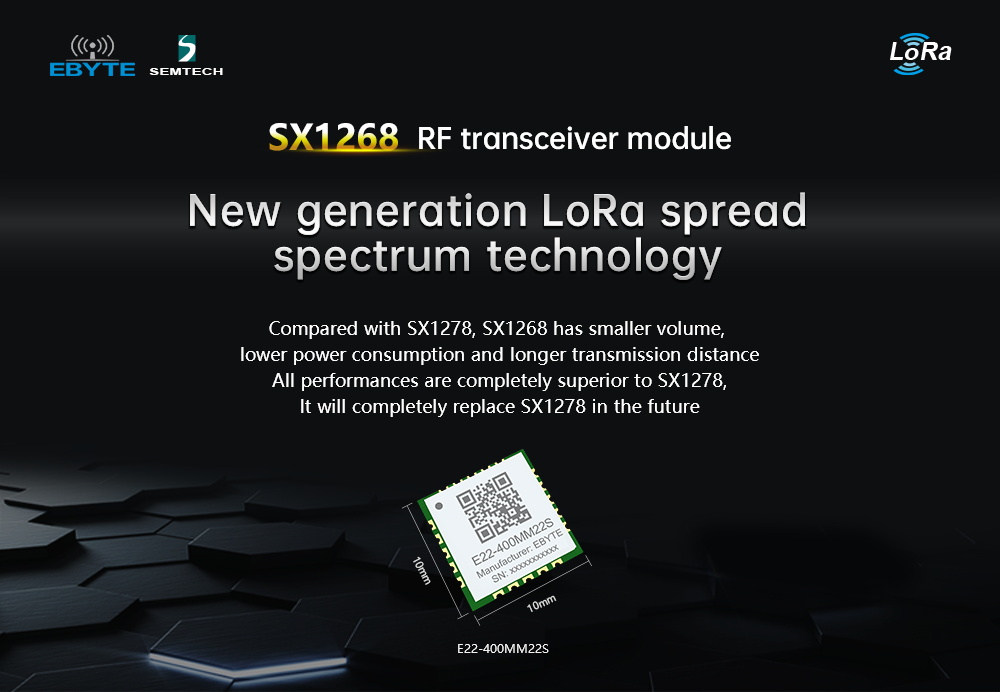

Overall dimensions | 10* 10*2.5 mm | - |
Antenna interface | Stamp hole/IPEX
| The equivalent impedance is about 50 ohms |
mainly parameters | Performance | Notes |
Min
| Max |
Power Supply Voltage(V) | 0 | 3.7 | Permanently burn module over 3.7V |
Blocking power(dBm) | - | 10 | At close range, the burn probability is low |
Operating temperature(°C) | -40 | 85 | - |
Product net weight | 0.5g士0.02g | Product net weight |

Pin number
| Pin name | Pin direction | Pin purposes |
1 | VCC | - | Power supply, range 1.8V~3.7V (external ceramic filter capacitor is recommended) |
2 | GND | - | Ground wire, connected to the power reference ground |
3 | NRST | input | Chip reset triggers input pin, active low level |
4 | NC
| - | - |
5 | NC | - | - |
6 | ANT | - | Radio frequency interface, stamp hole |
7 | GND | - | Ground wire, connected to the power reference ground |
8 | NC | - | - |
9 | TXEN | input | Rf switch transmitting control pin, connected to external microcontroller IO or DIO2, high level effective |
10 | RXEN | input | Rf switch receiving control pin, connected to external microcontroller IO, high level effective |
11 | BUSY | output | Used for status indication |
12 | MIS0 | output | SPI data output pin |
13 | M0SI | input | SPI data input pin |
14 | NSS | input | The module chip selection pin is used to start an SPI communication |
15 | SCK | input | SPI clock input pin |
16 | GND | - | Ground wire, connected to the power reference ground |
17 | NC | - | - |
18 | DI03 | Input/output
| Configurable universal I/O port |
19 | DIO2 | Input/output
| Configurable universal I/O port |
20 | DI01 | Input/output
| Configurable universal I/O port |
